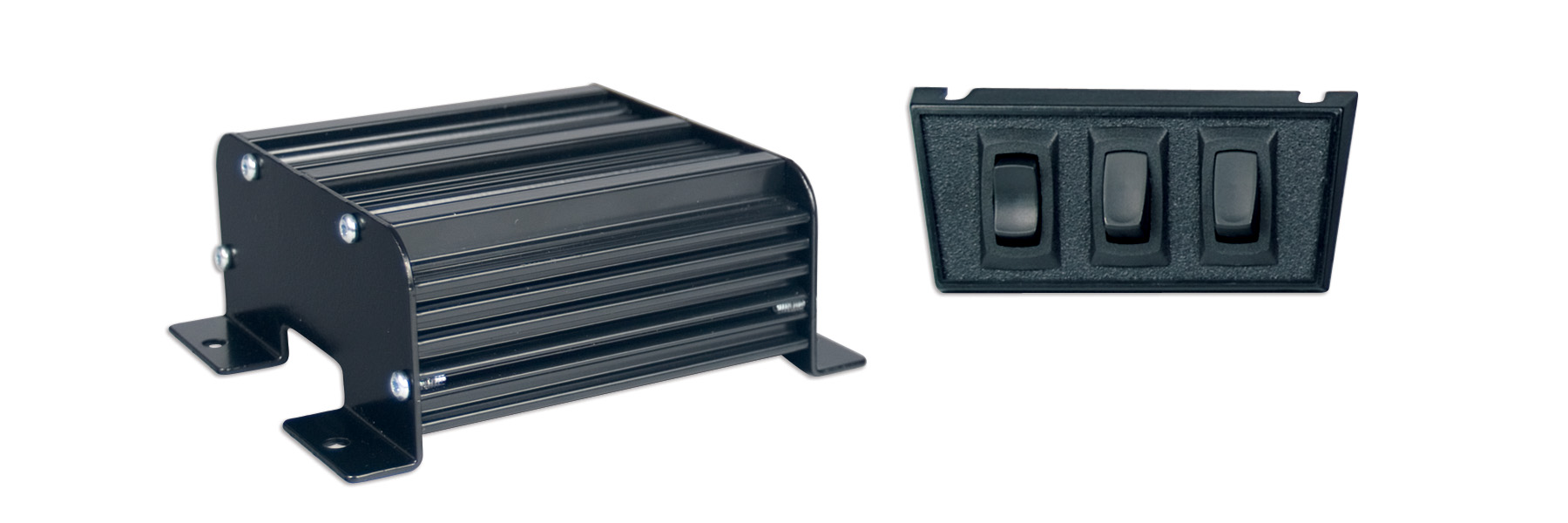

200 Series Compact Siren
Weatherproof; can be mounted in most environments, even under the hood.
Features
- Compact siren has a small size and remote amplifier for tight spaces for undercover vehicles or motorcycles
- Class D Technology with high speed digital switching provides higher efficiency, less current draw and better reliability
- Operates a single 100 watt speaker or dual 58 watt speakers
- 5 popular warning tones (up to 3 tones can be activated) : wail, yelp, piercer, hi-lo, plus 4 additional air horn tones available
- Horn Ring (hands free operation) controls the tones and can be programmed to play warning or air horn tones. When driver presses the vehicle’s horn it will activate or de-activate the siren in programmed tone
- Volume programming capability on Public Address (PA) and Radio Rebroadcast sets the volume at a desired level during installation so when the driver selects either option, volume is automatically set
- Park/Kill feature disables the siren when the vehicle is place in Park
- Built-in protection against over/under voltage, over temperature, short circuit and reverse polarity
- Hermetically sealed, providing protection in wet areas
- New! 200 Series Compact Siren with PA Function
Tones, Alerts, Yelps, and Wails
Tech Specs
-
Watts
100
-
Input Voltage Range
10-30 VDC
-
Dimensions
5.4" (13.7 cm) L x 2.3" (5.8 cm) H x 4.6" (11.6 cm) D
-
Certifications
Meets or exceeds SAE J1849
CA Title 13 sound levels when used with SoundOff Signal speakers
Resources
Part Numbers
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| ETSA200RW | 200 Series Compact Siren, ECE R10.05 Certified, w/ Remote Amplifier & Remote Switch Panel - 10-30v w/ Delphi Connector & Mating Harness | 2 Years | $381.00 |
| ETSA200R-PA | 200 Series Compact Siren w/ PA Function, Remote Amplifier & Remote Switch Panel (no connector) - 10-30v for use with single 100w or dual 58w speaker(s) | 2 Years | $527.00 |
| ETSA200RA-PA | 200 Series Compact Siren w/ PA Function, Remote Amplifier & Remote Switch Panel - 10-30v w/ Molex Connector (not water resistant) & Mating Harness | 2 Years | $563.00 |
| ETSA200RW-PA | 200 Series Compact Siren w/ PA Function, Remote Amplifier & Remote Switch Panel - 10-30v w/ Delphi Connector (water proof) & Mating Harness | 2 Years | $563.00 |
| ETSA200R | 200 Series Compact Siren, ECE R10.05 Certified, w/ Remote Amplifier & Remote Switch Panel - 10-30v for use with single 100w or dual 58w speaker(s) | 2 Years | $345.00 |
| ETSA200RA | 200 Series Compact Siren, ECE R10.05 Certified, w/ Remote Amplifier & Remote Switch Panel - 10-30v w/ Molex Connector & Mating Harness | 2 Years | $381.00 |
| ENGSA03021 | bluePRINT® 100 Watt Compact Remote Siren Amplifier - 10-30v for use with single 100w or dual 58w speaker(s) | 5 Years | $288.00 |
Service Parts
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| PSRN2HDK1 | Hardware Kit w/ 3 Position Rocker Switch | 2 Years | $38.00 |
| PSRN2HNS1 | Replacement Pre-AMP 4-Wire Harness Kit for 200 Series Sirens | 2 Years | $65.00 |
