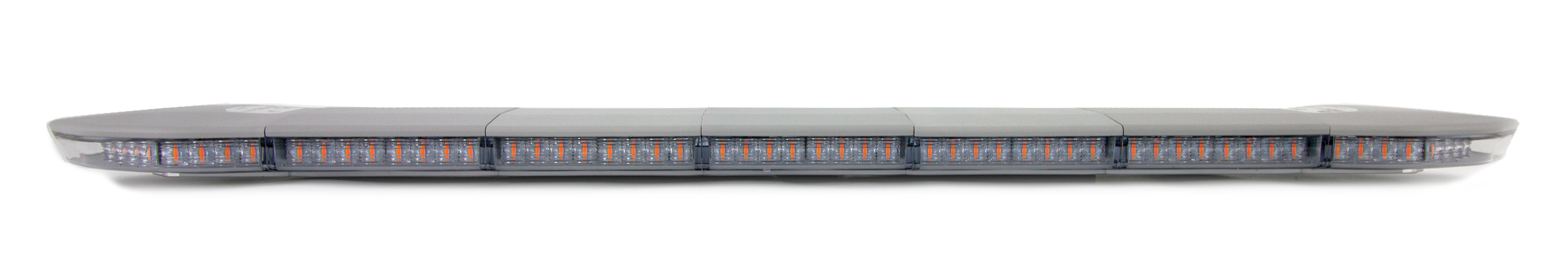

2X Series Lightbar Product Image

2X Series Lightbar

Cost-effective, sleek design. Bright enough for any working conditions.

Features

  • Interior controller board was engineered in USA by SoundOff Signal
  • Streamlined modular design; available in 47", 53" and 59" lengths
  • Available in four popular configurations to meet your budget and performance needs
  • Durable UV-resistant polycarbonate lenses
  • High intensity LEDs in amber for warning, white for work light and red for supplemental stop, tail, turn
  • SAE J845 Class 1 certified
  • Red STT LED modules

Customer support with unmatched can-do attitude

Tech Specs

  • Input Voltage Range

    10-30 VDC

  • LED Count

    47": 120 LEDs
    53": 136 LEDs
    59": 152 LEDs

  • Maximum Current Draw (@ 12.8 VDC)

    47": 7.2 Amps
    53": 8.0 Amps
    59": 8.8 Amps

  • Operating Temperature

    -40° C to + 65° C

  • Dimensions

    Lengths: 47" (119 cm); 53" (135 cm), 59" (150 cm)
    Height (common): 1.8125"
    Depth: 8.9375"

  • Mounting

    Standard Fixed Permanent Mount Only

  • Certifications

    SAE J845 Class 1 certified

Resources

Part Numbers

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
E2X47SLBAWR1 2x Series 47" Lightbar, Standard Fixed Mount w/ 15' cable for hard wire installation, 10-30v, SAE J845 Class 1, Gray Top Cover, Clear Lenses, Amber Warning/White Work Lights & Red STT LED Modules3 Years$1,176.00
E2X53SLBAWR1 2x Series 53" Lightbar, Standard Fixed Mount w/ 15' cable for hard wire installation, 10-30v, SAE J845 Class 1, Gray Top Cover, Clear Lenses, Amber Warning/White Work Lights & Red STT LED Modules3 Years$1,346.00
E2X59SLBAWR1 2x Series 59" Lightbar, Standard Fixed Mount w/ 15' cable for hard wire installation, 10-30v, SAE J845 Class 1, Gray Top Cover, Clear Lenses, Amber Warning (w/Blanks) & Red STT LED Modules3 Years$1,484.00
E2X59SLBAWR2 2x Series 59" Lightbar, Standard Fixed Mount w/ 15' cable for hard wire installation, 10-30v, SAE J845 Class 1, Gray Top Cover, Clear Lenses, Amber Warning/White Work Lights & Red STT LED Modules3 Years$1,608.00
