ConfigureIT System
Configure select perimeter lights via an app, not via a tap.
Features

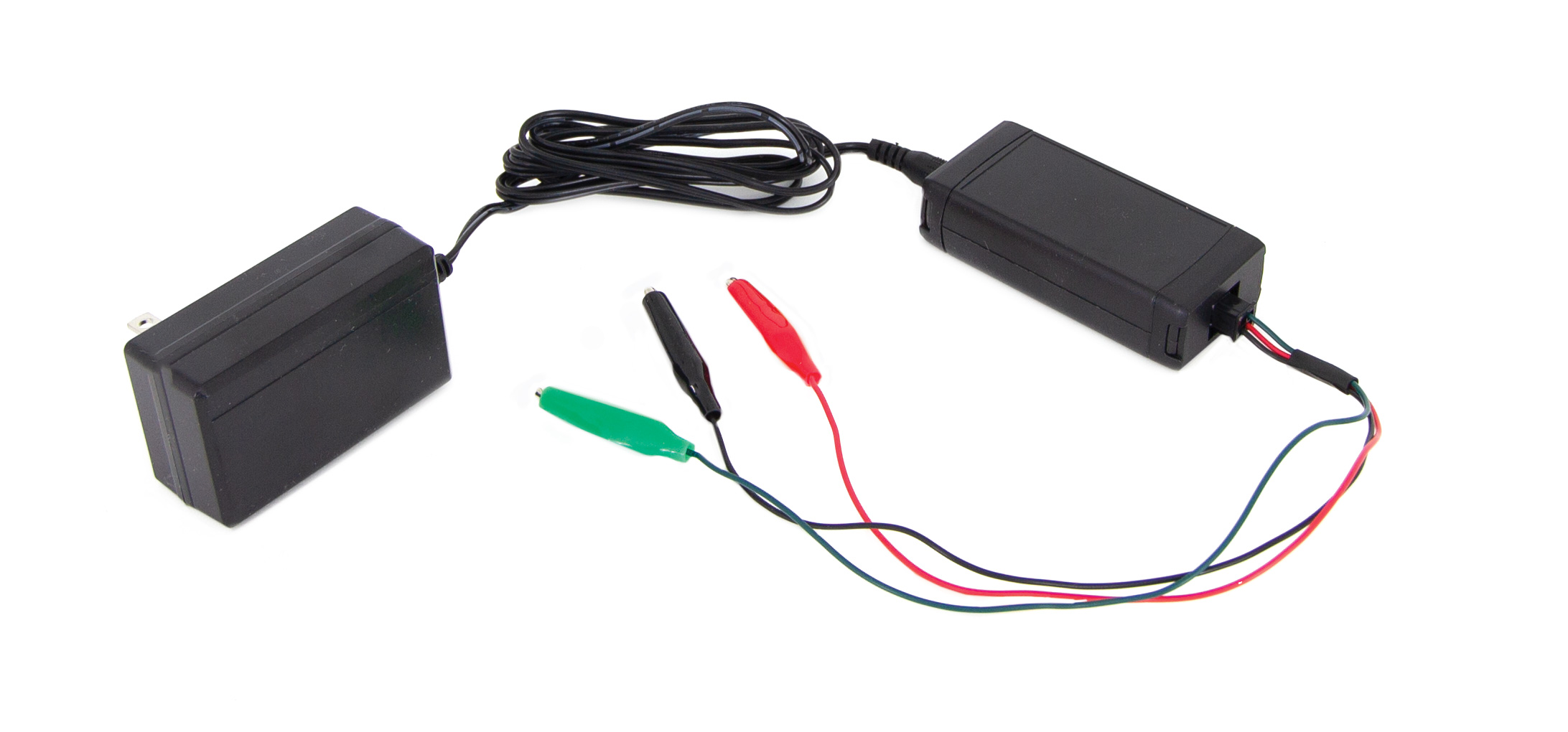

- System contains Bluetooth Module and two harnesses
- Reduces install time
- Eliminates tapping of wires
- Free ConfigureIT app is available via app store and Google Play
- Save configurations for repetitive lights for multiple/reused configurations
- Simple user interface – no training required
- Supported by world-class technical support
- Compatible with mpower 3", mpower 4", and 5-wire Intersector and Universal Undercover lights
- Part Number: ECTBM001
Download The App
![]() |
![]() |
Customer support with unmatched can-do attitude
Tech Specs
-
Includes
Bluetooth Module
Two Harnesses -
App Platforms
iOS
Android
Resources
Part Numbers
PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
---|---|---|---|
ECTBM001 | ConfigureIT Bluetooth Module | 90 day(s) | $190.00 |
Release Notes
2_1_Release
ConfigureIT Version 2.1 Released 2/15/2019 New Features: - Added warning for the user on send in custom table screen if the custom table is not enabled. Bug Fixes: - Removed Easter Egg partial support for Grid light and nRoads. - Fixed Activity indicator on Firmware update screen. - Disabled firmware update button while the update is happening. - Fixed issue with IOS not able to connect to Bluetooth device a second time. Occurs on both normal disconnect and device signal lost. - Changed the connection process. Disabled buttons when they shouldn’t be pressed. - Made x on Bluetooth icon bigger. - Fixed activity indicator on the Product info page. - Disabled refresh button on the Product information page when the refresh event is running. - Bug - 3345 - Apple devices give a 1E error when trying to reconnect to a Bluetooth device "connection lost event". - Bug - 3343 – Added support for very old firmware version of mPower 5-wire lights. - Bug - 3295 - Connection error message changed to specify if the issue is connecting to dongle or light. - Bug - 3293 - Custom Table now shows correct default configuration. - Bug - 3271 – Fixed Custom table not enabled try again error. - Bug - 3235 - Android Bluetooth devices now scroll when the device is in landscape mode. Firmware updates: - Added firmware file mPower_Module_v01_50.enc.
3_0_Release
ConfigureIT Release: 3.0 06/27/2019 Features: - Send buttons have been consolidated into one send all button now located in the title bar. - Improved the light detection process. A new or second light can be detected and programmed by simply connecting it and pressing send all. - Many improvements to firmware update including but not limited to. - Configurations can now be sent without leaving the firmware update screen. - An improved process for programming several individual lights back to back. - Added a new screen to allow the user to open and Save Files. - Added ability to delete configuration files. - Improved the user experience while the app is not connected to Bluetooth. - Many improvements to the Product configuration page including but not limited to the following. - Product configuration page now shows what product is currently being configured - Added a new light button. This new button allows the user to create a new configuration without hardware being present. - Added a button to allow the user to read the configuration of a connected light without attempting to send. - Improved the look and feel of the custom table setup page. - Custom table setup page now detects and allows the users to change the flash pattern table to the custom table without leaving the screen. - Wire simulator now shows the connected lights current configuration. - Scan/ connect screen now automatically begins scanning when you navigate to the screen. - Better uniform look and feel between IOS and Android: - New back buttons and screen titles - Tabs on Android were moved to the bottom. - Added a link to complete change list on the about page. - Added link to the how-to video on the Start page. - Added list of supported products to the Start page. Bug fixes: - Improved the custom table setup page to make buttons easier to press. - Improved issues relating to multi-press and double tapping buttons. - Bug #3644 - Background is tiled on IOS Tablets - Bug #3224 - Flash Pattern - longer Flash Pattern names do not fit on screen - Bug - Firmware update - button does not inform user when a light is changed Numerous other bug fixes and improvements.
3_1_Release
ConfigureIT Release: 3.1 02/27/2020 Features: - Added support for mpower® 4x2 lights Bug fixes: - Numerous bug fixes and improvements.
3_2_Release
ConfigureIT Release: 3.2 11/10/2020 Features: - None Bug fixes: - Firmware update 1.04 for mpower® 4x2 lights to improve thermal performance in remote flashing mode.
