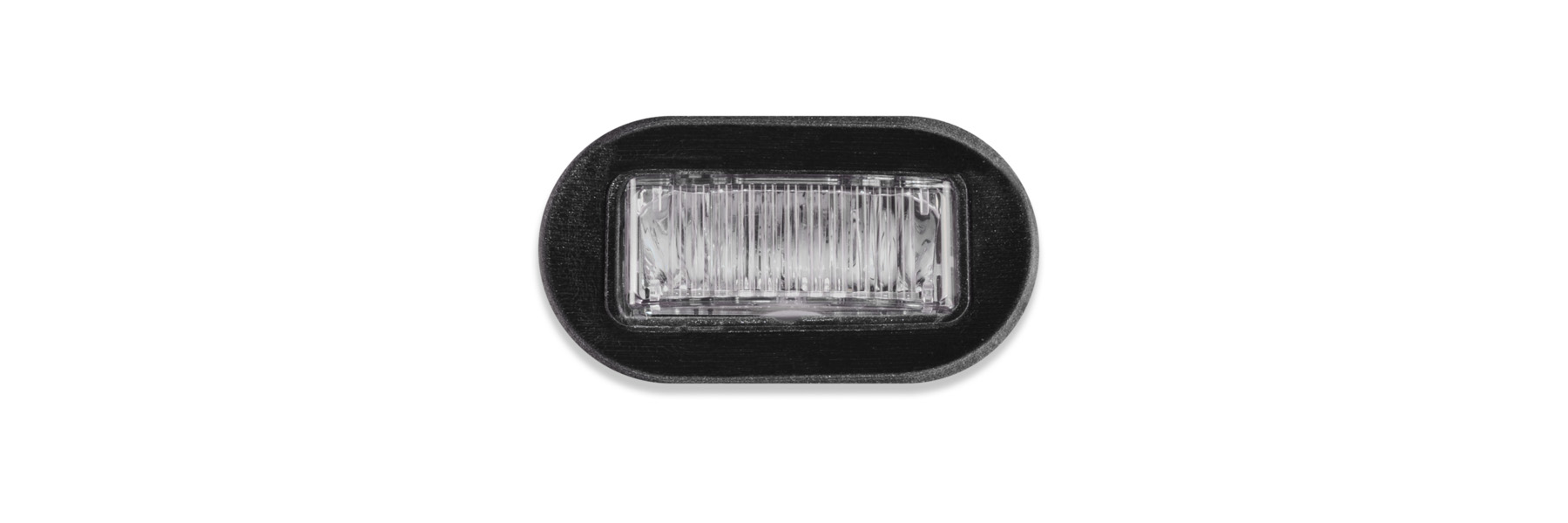

nFORCE® FIT LED Recess Mount Light Product Image

nFORCE® FIT LED Recess Mount Light

Extremely compact, highly versatile surface mount light that can FIT virtually anywhere on any vehicle.

Features

  • New vehicle design integration
  • Single, Split, Dual and Tri-Color capability
  • nFORCE FIT LED Recess Mount Light is available in a 3 LED solid color, 6 LED solid color, 6 LED dual color and 9 LED tri-color
  • Steady-burn white capability
  • Separate color control capability
  • Secondary function can be either flashing or steady-burn

Customer support with unmatched can-do attitude

Tech Specs

  • Input Voltage Range

    10-16 VDC

  • Current Draw (per module)

    3, single: <0.5 Amp @ 12.8 VDC 6, single: <1.0 Amp @ 12.8 VDC 6, dual: <0.5 Amp @ 12.8 VDC 9, tricolor: <0.5 Amp @ 12.8 VDC

  • Light Sync

    24 single sync, 2 lightheads

  • Flash Patterns

    12 single, 12 dual, 12 tricolor

  • Operating Temperature

    -40˚ C to +65° C

  • Dimensions

    3.72" (9.45 cm) L x 1.72" (4.3 cm) H x 1.48" (3.76 cm) D

  • Certifications

    SAE J845 Class 1 certified
    ECE R10.04 certified

Part Numbers

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
ENFFTSRFS3A nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - Amber5 Year(s)$104.00
ENFFTSRFS3B nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - Blue5 Year(s)$104.00
ENFFTSRFS3R nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - Red5 Year(s)$104.00
ENFFTSRFS3W nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - White5 Year(s)$104.00
ENFFTSRFS6A nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Amber5 Year(s)$170.00
ENFFTSRFS6B nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Blue5 Year(s)$170.00
ENFFTSRFS6D nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 6 LED, Dual Color - Red/White5 Year(s)$170.00
ENFFTSRFS6E nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 6 LED, Dual Color - Blue/White5 Year(s)$170.00
ENFFTSRFS6F nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 6 LED, Dual Color - Amber/White5 Year(s)$170.00
ENFFTSRFS6J nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 6 LED, Dual Color - Red/Blue5 Year(s)$170.00
ENFFTSRFS6R nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Red5 Year(s)$170.00
ENFFTSRFS6W nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - White5 Year(s)$170.00
ENFFTSRFS9BRA nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 9 LED, Tricolor - Blue/Red/Amber5 Year(s)$186.00
ENFFTSRFS9BRW nFORCE® FIT Single Recess Mount, SAE Class 1, 10-16v, Black Housing, 9 LED, Tricolor - Blue/Red/White5 Year(s)$186.00

Accessories

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
PNFFTRFGRB nFORCE® FIT Single Recess Mount Grommet, Black5 Year(s)$6.00
PNFFTRFGRW nFORCE® FIT Single Recess Mount Grommet, White5 Year(s)$6.00
