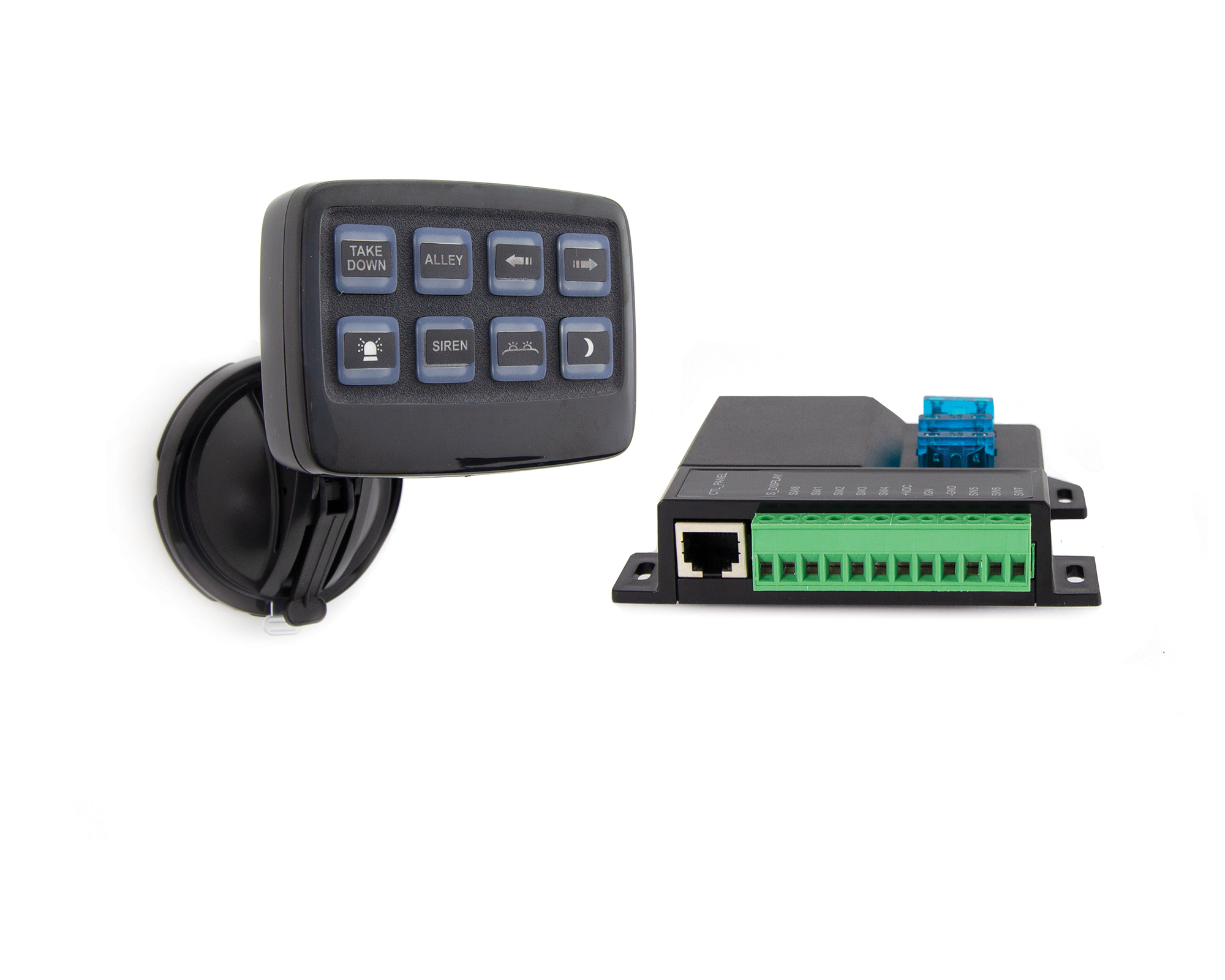

SW830 Multi-purpose Control Panel Product Image

SW830 Multi-purpose Control Panel

Streamlined 8-button controller

Features

• Eight switch control panel with three 10 amp and five 0.2 amp outputs for auxiliary device power or function activation

• All back lit rubber touch buttons

• Fully programmable buttons in ON/OFF or momentary switch mode

• 35 selectable icon stickers to clearly label panel

Customer support with unmatched can-do attitude

Tech Specs

  • Input Voltage Range

    10-24 VDC

  • Input Current

    Peak: 32A
    Average: 21A
    Min: 0.1A

  • Control Panel Cable

    8 pin RJ45 cable, 24 AWG, 4m

  • Operating Temperature

    -30˚ C to +65° C

  • Dimensions

    Control Panel: 3.74" (9.5 cm) L x 2.7" (6.86 cm) H x 1" (2.54 cm) D
    Power Module: 4.4" (11.18 cm) L x 3.5" (8.9 cm) H x 1.05" (2.67 cm) D

Resources

Part Numbers

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
ETCPMSW830 SW830 Multi-purpose Switch/Control Panel w/ Power Module1 Year$237.00
