SoundOff Signal

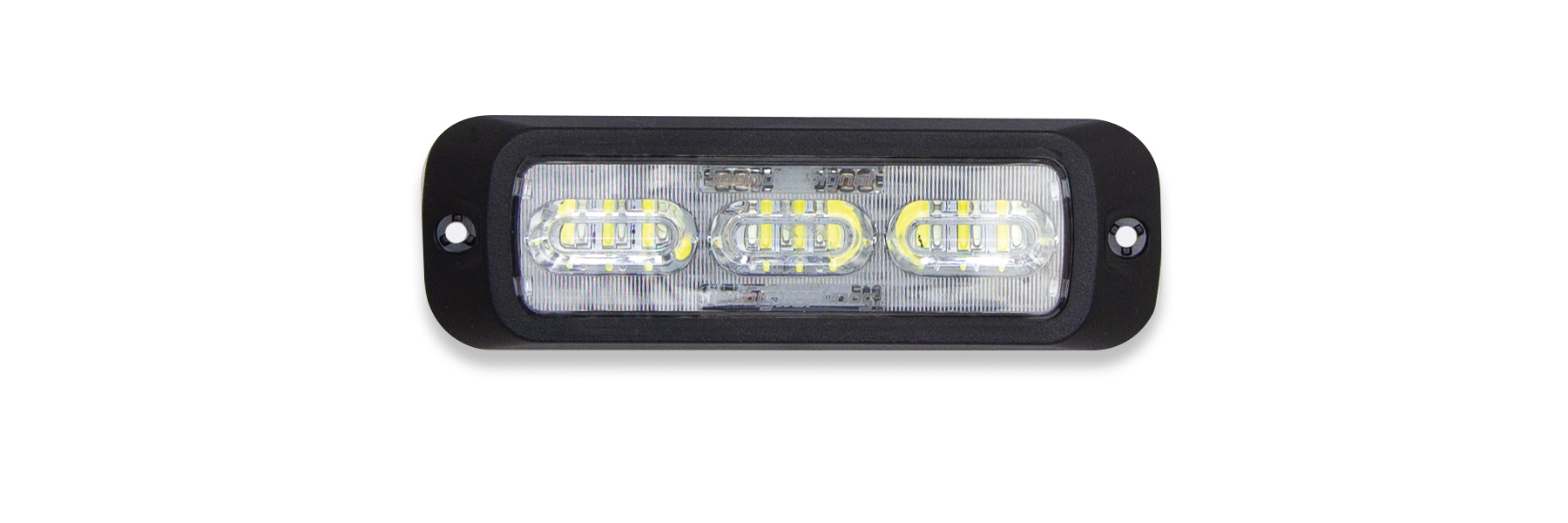

Bolt 2 Product Image

Bolt 2

Bright, high-performing light in compact, versatile design.

Features

​Bright, high-performing light in compact, versatile design.​

Customer support with unmatched can-do attitude

Contact Support

Tech Specs

  • Input Voltage Range

    10-30 VDC

  • Current Draw

    <1.1 Amps @ 12.8 VDC

  • Flash Patterns

    8

  • Operating Temperature

    -40˚ C to +65° C

  • LED Count

    Single Color: 9
    Dual Color: 18

  • Dimensions

    5.5" (14 cm) L x 1.6" (4.1 cm) H x 0.48" (12.2 cm) D

  • Mounting

    Surface Mount

  • Certifications

    SAE J845 Class 1 certified (amber, blue, red and white)
    CA title 13 Table 1 Class B certified (amber, blue and red)
    ECE R65 Category X Class 2 certified (amber, blue and red)
    ECE R10 certified

Resources

sos_bolt2_productinfo_040319
BOLT2.CARD_IS
E1XS2SME5xx_IS

Part Numbers

Symbol Key Descriptions:

††
This symbol next to a part means this part number is Going Obsolete. Check availability with customer service. Once a part number is discontinued, it will no longer show up in the part numbers list below.
This symbol next to a part means No Discounts Allowed. Contact customer service if you have any questions.
PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
E1XS2SME5RW Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 18 LED, Dual Color - Red/White 3 Years $116
E1XS2SME5RX Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 9 LED, Single Color - Red 3 Years $88
E1XS2SME5RA Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 18 LED, Dual Color - Red/Amber 3 Years $116
E1XS2SME5GX Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, SAE J595 Class 3, 10-30v, Black Housing, 9 LED, Single Color - Green 3 Years $88
E1XS2SME5GA Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 18 LED, Dual Color - Green/Amber 3 Years $116
E1XS2SME5BX Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 9 LED, Single Color - Blue 3 Years $88
E1XS2SME5AW Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 18 LED, Dual Color - Amber/White 3 Years $116
E1XS2SME5AX Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B,, 10-30v, Black Housing, 9 LED, Single Color - Amber 3 Years $88
E1XS2SME5BA Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 18 LED, Dual Color - Blue/Amber 3 Years $116
E1XS2SME5RB Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 18 LED, Dual Color - Red/Blue 3 Years $116
E1XS2SME5BW Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 18 LED, Dual Color - Blue/White 3 Years $116
E1XS2SME5WX Bolt 2 Surface Mount Light, ECE-R65 Category X Class 2 Certified, ECE R10 Certified, SAE J595 Class 1, CA title 13 Table 1 Class B, 10-30v, Black Housing, 9 LED, Single Color - White 3 Years $88

Accessories

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
P1XSADGSB 90° Bracket for Bolt 2 Lights (each) 3 Year(s) $22
