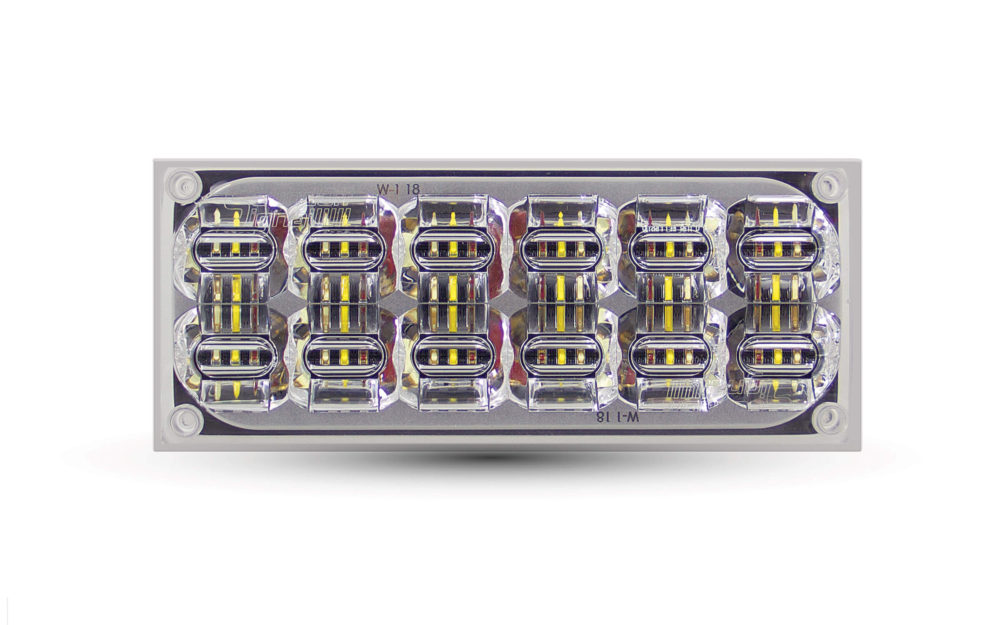

mpower® 7×3 Product Image

mpower® 7×3

Optic-grade silicone to stand up to the heat.

Features

  • Powerful lighting output at 180 degree viewing angles perfect for fire apparatuses
  • Extremely functional and customizable for use as stop/tail/turn, reverse, or scene warning light
  • Rugged, weather-resistant IP67 enclosure
  • Five-wire nano connector with 18″ flying leads
  • Durable, clear, silicone lens
  • Industry-standard bolt pattern location
  • Sync 2 compatible, with other sync 2 products (warning and reverse with warning only)
  • bluePRINT compatible, runs in slave mode

Customer support with unmatched can-do attitude

Tech Specs

  • Lens

    Silicone

  • Dimensions (without bezel)

    3" (7.62 cm) H x 7.18" (18.54 cm) L x 1" (2.54 cm) D

  • Flash Patterns

    Single: 12
    Dual- and tri-color: 14
    3 sequential turn patterns, plus steady burn on turn and 1 flicker stop on stop/tail

  • Available Colors

    All standard single, dual or tricolors; split warning; red stop/tail; amber turn; white reverse or white reverse with amber, blue, green, red or white warning

  • Mounts

    Stud, quick, or screw
    It is recommended to use the stud mount option for any dynamic mount surfaces (i.e. swinging panels, doors, and tail gates).

  • Certifications

    SAE J595 Class 1 certified; CA Title 13 certified; NFPA, KKK-1822-F and FMVSS-108 (backup, stop/tail and turn)

  • Warranty

    Five-year

Resources

Part Numbers

PART NUMBERDESCRIPTIONWARRANTYUNIT PRICE
EMPSC07MH-Wmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - White5 Years$365.00
EMPSC07MH-Rmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Red5 Years$365.00
EMPSC07MJ-Dmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Red/White5 Years$425.00
EMPSC07MJ-Empower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Blue/White5 Years$425.00
EMPSC07MK-Jmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/Blue5 Years$385.00
EMPSC07MN-Dmpower® 7x3 Backup Light with warning, Stud Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Red/White5 Years$365.00
EMPSC07M8-Rmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Red5 Years$365.00
EMPSC07M9-Dmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Red/White5 Years$425.00
EMPSC07M4-Wmpower® 7x3 Backup Light, Quick Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - White5 Years$345.00
EMPSC07M5-Dmpower® 7x3 Backup Light with Warning, Quick Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Red/White5 Years$365.00
EMPSC07MA-Mmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Blue/Amber5 Years$385.00
EMPSC07M3-8mpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 36 LED, Tricolor - Red/Blue/White5 Years$475.00
EMPSC07MK-Kmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/Amber5 Years$385.00
EMPSC07MK-Mmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Blue/Amber5 Years$385.00
EMPSC07ML-6mpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 36 LED, Tricolor - Red/Blue/Amber5 Years$475.00
EMPSC07ML-8mpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 36 LED, Tricolor - Red/Blue/White5 Years$475.00
EMPSC07MK-Empower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Blue/White5 Years$420.00
EMPSC07MJ-Fmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Amber/White5 Years$425.00
EMPSC07MA-Fmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Amber/White5 Years$420.00
EMPSC07MA-Jmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/Blue5 Years$385.00
EMPSC07MA-Kmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/Amber5 Years$385.00
EMPSC07MK-Dmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/White5 Years$420.00
EMPSC07M2-Fmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Amber/White5 Years$420.00
EMPSC07M2-Jmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/Blue5 Years$385.00
EMPSC07M9-Fmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Amber/White5 Years$425.00
EMPSC07M9-Jmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Red/Blue5 Years$425.00
EMPSC07M9-Empower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Blue/White5 Years$425.00
EMPSC07MA-Dmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/White5 Years$420.00
EMPSC07ME-Rmpower® 7x3 Stop/Tail & Turn Light, Screw Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - Red5 Years$330.00
EMPSC07M5-Fmpower® 7x3 Backup Light with Warning, Quick Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Amber/White5 Years$365.00
EMPSC07MA-Empower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Blue/White5 Years$420.00
EMPSC07MB-6mpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 36 LED, Tricolor - Red/Blue/Amber5 Years$475.00
EMPSC07MB-8mpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 36 LED, Tricolor - Red/Blue/White5 Years$475.00
EMPSC07MD-Dmpower® 7x3 Backup Light with Warning, Screw Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Red/White5 Years$365.00
EMPSC07M8-Wmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - White5 Years$365.00
EMPSC07M2-Empower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Blue/White5 Years$420.00
EMPSC07M8-Ampower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Amber5 Years$365.00
EMPSC07M8-Bmpower® 7x3 Warning Light w/ Screw Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Blue5 Years$365.00
EMPSC07M0-Bmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Blue5 Years$365.00
EMPSC07M0-Wmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - White5 Years$365.00
EMPSC07M1-Dmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Red/White5 Years$425.00
EMPSC07M1-Empower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Blue/White5 Years$425.00
EMPSC07M1-Fmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Amber/White5 Years$425.00
EMPSC07MN-Fmpower® 7x3 Backup Light with warning, Stud Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Amber/White5 Years$365.00
EMPSC07M2-Kmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/Amber5 Years$385.00
EMPSC07M2-Mmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Blue/Amber5 Years$385.00
EMPSC07M3-6mpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 36 LED, Tricolor - Red/Blue/Amber5 Years$475.00
EMPSC07MK-Fmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Amber/White5 Years$420.00
EMPSC07MH-Bmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Blue5 Years$365.00
EMPSC07MJ-Jmpower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Red/Blue5 Years$425.00
EMPSC07MH-Ampower® 7x3 Warning Light w/ Stud Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Amber5 Years$365.00
EMPSC07MF-Ampower® 7x3 Turn Light, Screw Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - Amber5 Years$330.00
EMPSC07M0-Ampower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Amber5 Years$365.00
EMPSC07M5-Empower® 7x3 Backup Light with Warning, Quick Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Blue/White5 Years$365.00
EMPSC07M6-Rmpower® 7x3 Stop/Tail & Turn Light, Quick Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - Red5 Years$330.00
EMPSC07M7-Ampower® 7x3 Turn Light, Quick Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - Amber5 Years$330.00
EMPSC07M1-Jmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Dual Color - Red/Blue5 Years$425.00
EMPSC07M2-Dmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 24 LED, Split Color - Red/White5 Years$420.00
EMPSC07MC-Wmpower® 7x3 Backup Light, Screw Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - White5 Years$345.00
EMPSC07MD-Empower® 7x3 Backup Light with Warning, Screw Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Blue/White5 Years$365.00
EMPSC07MD-Fmpower® 7x3 Backup Light with Warning, Screw Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Amber/White5 Years$365.00
EMPSC07MM-Wmpower® 7x3 Backup Light, Stud Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - White5 Years$345.00
EMPSC07MN-Empower® 7x3 Backup Light with warning, Stud Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 28 LED - Blue/White5 Years$365.00
EMPSC07MP-Rmpower® 7x3 Stop/Tail & Turn Light, Stud Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - Red5 Years$330.00
EMPSC07MQ-Ampower® 7x3 Turn Light, Stud Mount, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 18 LED - Amber5 Years$330.00
EMPSC07M0-Rmpower® 7x3 Warning Light w/ Quick Mount, SAE Class 1, 9-32 Vdc, 1.5' Pigtail, Clear Housing/Lens, 12 LED, Single Color - Red5 Years$365.00

Accessories

PART NUMBERDESCRIPTIONWARRANTYUNIT PRICE
PMP8BZL01BBlack Single Bezel (includes gasket) - for use with mpower® 7x3 Lights5 Years$30.00
PMP8BZL01CChrome Single Bezel (includes gasket) - for use with mpower® 7x3 Lights5 Years$30.00
PMP8BZL03CChrome Triple Bezel (includes hardware kit) - for use with (3) mpower® 7x3 Lights5 Years$119.00
PMP8BZL04CChrome Quad Bezel (includes hardware kit) - for use with (4) mpower® 7x3 Lights5 Years$159.00
PMP8BZL01BBlack Single Bezel (includes gasket) - for use with mpower® 7x3 Lights5 Years$30.00
PMP8BZL01CChrome Single Bezel (includes gasket) - for use with mpower® 7x3 Lights5 Years$30.00

Service Parts

PART NUMBERDESCRIPTIONWARRANTYUNIT PRICE
PMP8HK01-STHardware Kit for Stud Mount application - for use with mpower® 7x3 Lights2 Years$18.00
PMP8HN001Power Harness with Connector2 Years$31.00
PMP8HK01-BZTriple & Quad Bezel Hardware Kit - for use with mpower® 7x3 Lights2 Years$18.00
PMP8HK01-SMHardware Kit for Screw Mount application - for use with mpower® 7x3 Lights2 Years$18.00
PMP8HN001Power Harness with Connector2 Years$31.00
PMP8HK01-QMHardware Kit for Quick Mount application - for use with mpower® 7x3 Lights2 Years$18.00
PMP8HN001Power Harness with Connector2 Years$31.00
