mpower® Grid Light
The power of a lightbar in the footprint of a beacon.
Features
- Single, dual and tricolor capabilities
- ClearDuty® silicone molded optic design delivers advantages over conventional polycarbonate lenses
- Multiple mounting options: permanent, pipe, magnetic and mirror mounts (refer to the mount options)
- Ability to spec 4-16 modules with single and dual stacked options (refer to the mount options)
- Rugged construction with non-corrosive aluminum top/bottom and durable rubber corners
- Current 3-wire four inch mpower lightbar module variants
- Synchronizes with other sync 2 products
- Secondary flash or steady burn options; same as the mpower® Fascia product
- Environmentally safe materials which allow disassembly after useable life; may be recycled
- Wire exit is located through the bottom, rear of the light

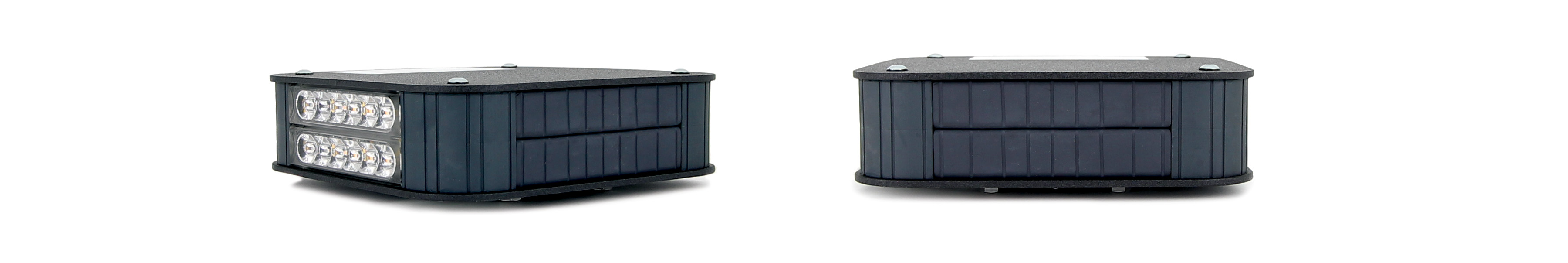

- New! Now available with blank modules
Customer support with unmatched can-do attitude
Tech Specs
-
Input Voltage Range
9-32 VDC
-
Flash Patterns
Single, Dual and Tricolor: Quint (SAE); Warp, Inter-Cycle; Double (SAE); Quad; Power Pulse; Road Runner (SAE/CaXIII); Q-Switch (SAE); Steady Burn + Flash; Roadrunner; Steady Burn + Flash; Quad; Quad 2 and Double 2
Dual and Tricolor: Random 1 and Random 2 -
Operating Temperature
-40° C to +65° C
-
Circuit Protection
Reverse polarity, transient voltage and high temperature and over-voltage
-
Dimensions
1x1 Single Stack: 7.46" (19 cm)L x 1.5" (3.8 cm) H

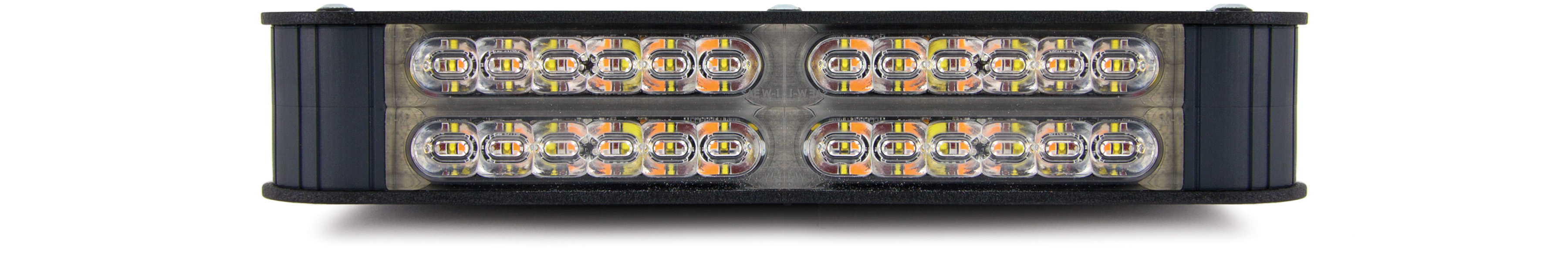

1x1 Dual Stack: 7.46" (19 cm) L x 2.4" (6.1 cm) H

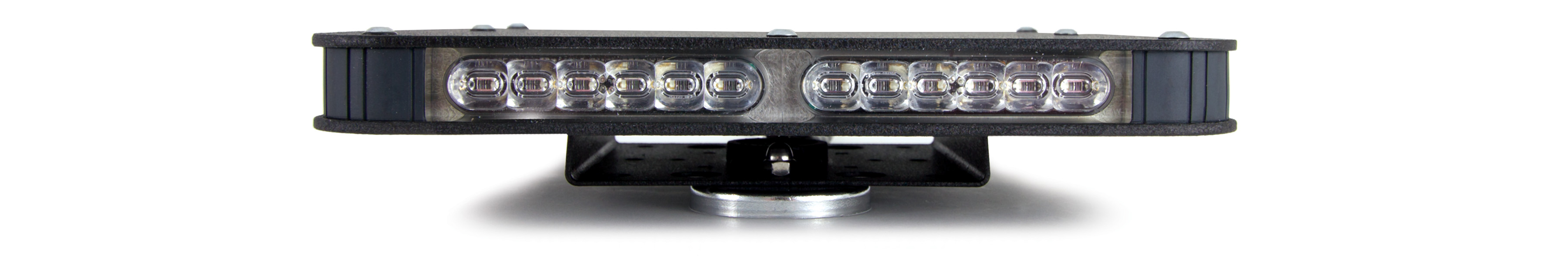

2x2 Single Stack: 11.71" (29.74 cm) L x 1.5" (3.8 cm) H
2x2 Dual Stack: 11.71" (29.74 cm) L x 2.4" (6.1 cm) H -
Certifications
SAE J595 Class 1 certified
SAE J845 Class 2 certified
CA Title 13 certified
NFPA compliant
Resources
Part Numbers
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| EMPGLS (12 LED - 1x1x1) | 1x1x1 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 12 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $1,387.00 |
| EMPGLS (12 LED - 1x1x2) | 1x1x2 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 12 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $2,100.00 |
| EMPGLS (12 LED - 2x2x1) | 2x2x1 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 12 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $2,180.00 |
| EMPGLS (12 LED - 2x2x2) | 2x2x2 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 12 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $3,436.00 |
| EMPGLS (18 LED - 1x1x1) | 1x1x1 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 18 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $1,539.00 |
| EMPGLS (18 LED - 1x1x2) | 1x1x2 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 18 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $2,404.00 |
| EMPGLS (18 LED - 2x2x1) | 2x2x1 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 18 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $2,484.00 |
| EMPGLS (18 LED - 2x2x2) | 2x2x2 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 18 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $4,044.00 |
| EMPGLS (6 LED - 1x1x1) | 1x1x1 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 6 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $1,219.00 |
| EMPGLS (6 LED - 1x1x2) | 1x1x2 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 6 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $1,764.00 |
| EMPGLS (6 LED - 2x2x1) | 2x2x1 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 6 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $1,844.00 |
| EMPGLS (6 LED - 2x2x2) | 2x2x2 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 6 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $2,764.00 |
| EMPGLS (8 LED - 1x1x1) | 1x1x1 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 8 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $1,275.00 |
| EMPGLS (8 LED - 1x1x2) | 1x1x2 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 8 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $1,876.00 |
| EMPGLS (8 LED - 2x2x1) | 2x2x1 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 8 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $1,956.00 |
| EMPGLS (8 LED - 2x2x2) | 2x2x2 mpower Grid Light w/ Combo Mount - Clear Lenses with Amber, Blue, Red or White / 8 LED 4" Modules | 5 year, Ten year on UV lens discoloration | $2,988.00 |
Service Parts
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| PMPGLHK01 | Flat Mount Hardware Kit - connects mount to light | 2 Years | $5.00 |
| PMPGLHNPW15 | 15' Power Harness | 2 Years | $162.00 |
| PMPGLHNPW25 | 25' Power Harness | 2 Years | $240.00 |
| PMPGLK00B | Combination Mount Kit for Permanent or Pipe - Black | 2 Years | $150.00 |
| PMPGLK00S | Combination Mount Kit for Permanent or Pipe - Silver | 2 Years | $150.00 |
| PMPGLK01B | Flat Mount Kit - Black | 2 Years | $35.00 |
| PMPGLK01S | Flat Mount Kit - Silver | 2 Years | $35.00 |
| PMPGLK03 | Combination and/or Flat Mount Hardware Kit - connects mount to vehicle | 2 Years | $25.00 |
| PMPGLKM1 | 1" Mirror Mount Clamp | 2 Years | $305.00 |
| PMPGLKM2 | 1.25" Mirror Mount Clamp | 2 Years | $305.00 |
| PMPGLCRB01 | Single Stacked Corner - Black | 2 Years | $58.00 |
| PMPGLCRB02 | Dual Stacked Corner - Black | 2 Years | $87.00 |
| PMPGLCRS01 | Single Stacked Corner - Silver | 2 Years | $58.00 |
| PMPGLCRS02 | Dual Stacked Corner - Silver | 2 Years | $87.00 |
| PMPGLK02 | Magnet Mount Kit (pair) | 2 Years | $85.00 |
| PMPGLLS0B | 4" Blank Module for Grid Light - Black (no LEDs) | 2 Years | $49.00 |
| PMPGLLS0S | 4" Blank Module for Grid Light - Silver (no LEDs) | 2 Years | $49.00 |
| PMPGLTTB0101 | 4" Top Cover 1 x 1 - Black | 2 Years | $70.00 |
| PMPGLTTB0202 | 4" Top Cover 2 x 2 - Black | 2 Years | $100.00 |
| PMPGLTTS0101 | 4" Top Cover 1 x 1 - Silver | 2 Years | $70.00 |
| PMPGLTTS0202 | 4" Top Cover 2 x 2 - Silver | 2 Years | $100.00 |
| PMPGLDST1 | Distribution Board (without sensor) | 2 Years | $93.00 |
| PMPGLLSD212DC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Red/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212EC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Blue/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212FC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Amber/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212HC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Green/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212JC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Red/Blue - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212KC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Red/Amber - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212LC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Red/Green - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212NC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Blue/Green - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212MC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Blue/Amber - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSD212PC | 12 LED 4" Inboard Module for Exterior Lightbar - Dual Color Green/Amber - Clear Lens | 2 year, Ten year on UV lens discoloration | $162.00 |
| PMPGLLSS206AC | 6 LED 4" Inboard Module for Exterior Lightbar - Single Color Amber/Clear Lens | 2 year, Ten year on UV lens discoloration | $128.00 |
| PMPGLLSS206BC | 6 LED 4" Inboard Module for Exterior Lightbar - Single Color Blue/Clear Lens | 2 year, Ten year on UV lens discoloration | $128.00 |
| PMPGLLSS206GC | 6 LED 4" Inboard Module for Exterior Lightbar - Single Color Green/Clear Lens | 2 year, Ten year on UV lens discoloration | $128.00 |
| PMPGLLSS206RC | 6 LED 4" Inboard Module for Exterior Lightbar - Single Color Red/Clear Lens | 2 year, Ten year on UV lens discoloration | $128.00 |
| PMPGLLSS206WC | 6 LED 4" Inboard Module for Exterior Lightbar - Single Color White/Clear Lens | 2 year, Ten year on UV lens discoloration | $128.00 |
| PMPGLLSS208AC | 8 LED 4" Inboard Module for Exterior Lightbar - Single Color Amber/Clear Lens | 2 year, Ten year on UV lens discoloration | $140.00 |
| PMPGLLSS208BC | 8 LED 4" Inboard Module for Exterior Lightbar - Single Color Blue/Clear Lens | 2 year, Ten year on UV lens discoloration | $140.00 |
| PMPGLLSS208GC | 8 LED 4" Inboard Module for Exterior Lightbar - Single Color Green/Clear Lens | 2 year, Ten year on UV lens discoloration | $140.00 |
| PMPGLLSS208RC | 8 LED 4" Inboard Module for Exterior Lightbar - Single Color Red/Clear Lens | 2 year, Ten year on UV lens discoloration | $140.00 |
| PMPGLLSS208WC | 8 LED 4" Inboard Module for Exterior Lightbar - Single Color White/Clear Lens | 2 year, Ten year on UV lens discoloration | $140.00 |
| PMPGLLST218BAGC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Blue/Amber/Green - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218BAWC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Blue/Amber/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218BGWC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Blue/Green/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218GAWC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Green/Amber/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218RAGC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Red/Amber/Green - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218RAWC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Red/Amber/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218RBAC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Red/Blue/Amber - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218RBGC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Red/Blue/Green - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218RBWC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Red/Blue/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
| PMPGLLST218RGWC | 18 LED 4" Inboard Module for Exterior Lightbar - Tricolor Red/Green/White - Clear Lens | 2 year, Ten year on UV lens discoloration | $185.00 |
