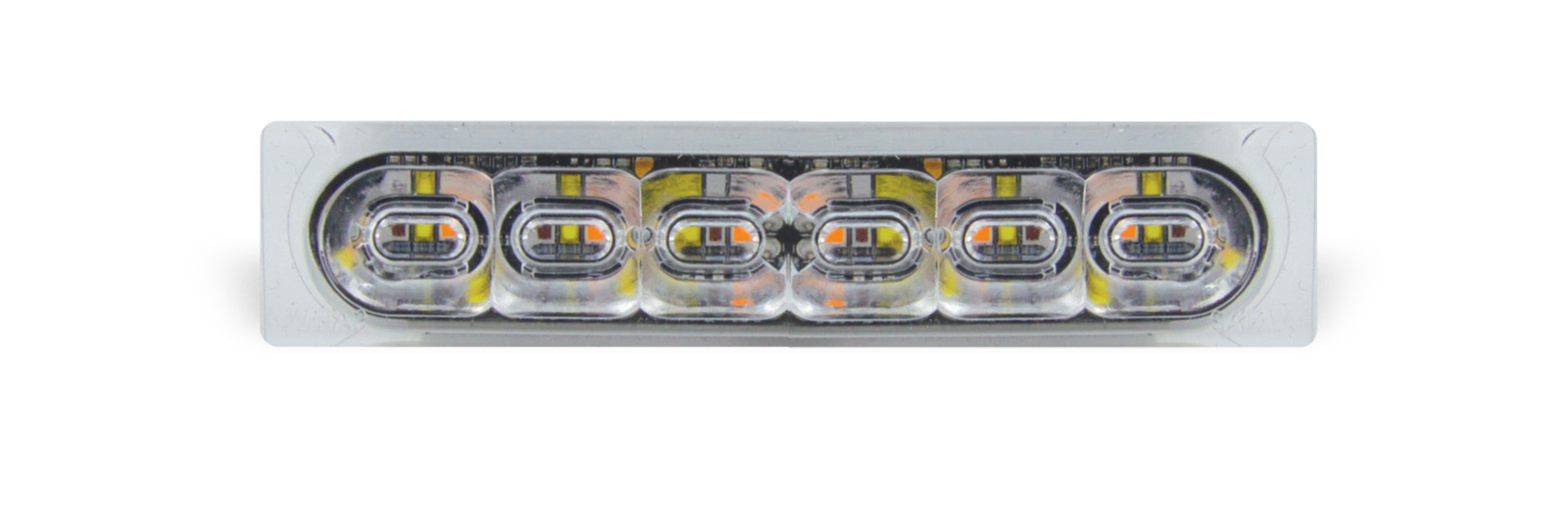

mpower® HD Light
Virtually indestructible when paired with our Universal Rock Bracket.Features
- Single, dual and tricolor capabilities
- Patented, one-piece silicone lens and optic design delivers advantages over conventional polycarbonate lenses
- A smaller footprint with maximized candela output
- Greater resistance to gravel pitting, scratching or cracking
- Improved sealing to prevent water from entering light
- Higher UV and thermal stability to prevent lens from yellowing over time
Customer support with unmatched can-do attitude
Tech Specs
-
Input Voltage Range
9-32 VDC
-
Current Draw
<1.0 Amp @ 12.8 VDC
-
Light Sync
24 single sync, 2 lightheads
-
Flash Patterns
12 single, 12 dual, 14 tricolor
-
Operating Temperature
-40˚ C to +65° C
-
Dimensions
4.25" (10.8 cm) L x 0.92" (2.3 cm) W x 6" (1.5 cm) D [from mounting surface]
-
Certifications
SAE J595 Class 1 certified
SAE J845 Class 1 certified
CA Title 13, Article 22 compliant
ECE R10.04 certified
Resources
Part Numbers
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE | |
|---|---|---|---|---|
| EMPSCG4STS4E | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Blue/White | 5 Years | $245 | |
| EMPSCG4STS4D | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Red/White | 5 Years | $245 | |
| EMPSCG4STS3W | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - White | 5 Years | $229 | |
| EMPSCG4STS3R | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - Red | 5 Years | $229 | |
| EMPSCG4STS2B | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 6 LED, Single Color - Blue | 5 Years | $209 | |
| EMPS4STS5RBW | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 18 LED, Tricolor - Red/Blue/White | 5 Years | $272 | |
| EMPSCG4STS2R | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 6 LED, Single Color - Red | 5 Years | $209 | |
| EMPSCG4STS4F | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Amber/White | 5 Years | $245 | |
| EMPSCG4STS2W | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 6 LED, Single Color - White | 5 Years | $209 | |
| EMPSCG4STS3A | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - Amber | 5 Years | $229 | |
| EMPSCG4STS3B | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - Blue | 5 Years | $229 | |
| EMPSCG4STS5BAW | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Blue/Amber/White | 5 Years | $272 | |
| EMPSCG4STS5RAW | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Amber/White | 5 Years | $272 | |
| EMPSCG4STS5RBA | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Blue/Amber | 5 Years | $272 | |
| EMPSCG4STS5RBW | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Blue/White | 5 Years | $272 | |
| EMPSCG4STS4M | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Blue/Amber | 5 Years | $245 | |
| EMPS4STS2W | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 6 LED, Single Color - White | 5 Years | $209 | |
| EMPS4STS3A | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 8 LED, Single Color - Amber | 5 Years | $229 | |
| EMPS4STS3B | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 8 LED, Single Color - Blue | 5 Years | $229 | |
| EMPS4STS3R | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 8 LED, Single Color - Red | 5 Years | $229 | |
| EMPS4STS3W | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 8 LED, Single Color - White | 5 Years | $229 | |
| EMPS4STS4D | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 12 LED, Dual Color - Red/White | 5 Years | $245 | |
| EMPS4STS4E | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 12 LED, Dual Color - Blue/White | 5 Years | $245 | |
| EMPS4STS4F | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 12 LED, Dual Color - Amber/White | 5 Years | $245 | |
| EMPS4STS4J | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 12 LED, Dual Color - Red/Blue | 5 Years | $245 | |
| EMPS4STS5RBA | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 18 LED, Tricolor - Red/Blue/Amber | 5 Years | $272 | |
| EMPSCG4STS4J | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Red/Blue | 5 Years | $245 | |
| EMPSCG4STS4K | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Red/Amber | 5 Years | $245 | |
| EMPS4STS2A | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 6 LED, Single Color - Amber | 5 Years | $209 | |
| EMPS4STS2B | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, Clear Lens, 6 LED, Single Color - Blue | 5 Years | $209 | |
| EMPS4STS2R | mpower® HD 4" Light, 18" hard wire w/ sync option, SAE Class 1 & CA Title 13, 9-32 Vdc, 6 LED, Single Color - Red | 5 Years | $209 | |
| EMPSCG4STS2A | mpower® 4" 3-Wire HD Light w/ Stud Mount, for use with mpower Arrow Kit and Connect-n-Go, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 6 LED, Single Color - Amber | 5 Years | $209 |
Accessories
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE | |
|---|---|---|---|---|
| PNT3BKUMB2-P | Under Mirror Mount Bracket Kit (each) for installation on 2014 - 2022 Dodge Ram 1500 Classic, for use with Intersector Surface Mount & mpower® 3 and 4 inch Stud & Quick Mounts, Passenger Side | 5 Years | $39 | |
| PNT3BKUMB2-D | Under Mirror Mount Bracket Kit (each) for installation on 2014 - 2022 Dodge Ram 1500 Classic, for use with Intersector Surface Mount & mpower® 3 and 4 inch Stud & Quick Mounts, Driver Side | 5 Years | $39 | |
| PMP4BZL01P | Primed 4" Bezel (includes gasket & hardware kit) for use with mpower® HD Light | 5 Years | $24 | |
| PMP4BZL01B | Black 4" Bezel (includes gasket & hardware kit) for use with mpower® HD Light | 5 Years | $24 | |
| PMP4BKRKLB | Rock Bracket Kit: includes Mounting Hardware - Single, Black | 5 Years | $36 | |
| PMP2RSBUV3 | Rear Spoiler Bracket, 3 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light - Ford Utility 2011 - 2019 | 5 Years | $130 | |
| PMP2RS302 | Rear Spoiler Bracket, 3 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light - Ford Utility 2020-2022 | 5 Years | $130 | |
| PMP2BKUMB4 | Under Mirror Mount Bracket Kit (each) for installation on Ford PI Utility 2020-2022 for use with mpower® 3” and 4" Stud or Quick Mount and Intersector Surface Mount | 5 Years | $41 | |
| PMP2BKUMB1 | Under Mirror Mount Bracket Kit (each) for installation on Ford PI Utility 2017 - 2018 for use with Intersector Surface Mount & mpower® 4” Stud Mount (not compatible with 3" Stud Mount) | 5 Years | $32 | |
| PMP2BKDGAJ-W | 90 Degree Deck/Grille Adjustable Bracket Kit for mpower® 4" Fascia Light w/ Stud Mount - White | 5 Years | $16 | |
| PMP1BKUMB3 | Under Mirror Mount Bracket Kit (each) for installation on Chevrolet Tahoe 2018 - 2020 for use with mpower® 3” Stud or Quick Mount (not compatible with 4" Stud Mount) | 5 Years | $32 | |
| PMP1BKUMB2 | Under Mirror Mount Bracket Kit (each) for installation on Chevrolet Silverado & GMC Sierra 2018 - 2019 for use with mpower® 3” Stud or Quick Mount (not compatible with 4" Stud Mount) | 5 Years | $32 | |
| PMP1BKDGAJ-W | Deck/Grille Adjustable Bracket Kit for mpower® 3" Fascia Light w/ Stud Mount - White | 5 Years | $16 | |
| ECTBM001 | ConfigureIT Bluetooth Module | 90 days | $224 | |
| ECTBM003 | ConfigureIT Bluetooth Module with harness, for use with Ford PI Utility 2020 - plugs into vehicle programing connector controls color patterns for headlight, Quarter Window modules (mpower® 3" & 4" Fascia , HD & 4x2 Lights) | 90 days | $251 | |
| PMP1BKUMB1 | Under Mirror Mount Bracket Kit (each) for installation on Dodge Durango 2018-2022 & Ford PI Utility 2020-2022 for use with mpower® 3” Stud or Quick Mount (not compatible with 4" Stud Mount) | 5 Years | $32 | |
| PMP2RSBUV4 | Rear Spoiler Bracket, 4 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light - Ford Utility 2011 - 2019 | 5 Years | $149 | |
| PNT3BKUMB3-P | Under Mirror Mount Bracket Kit (each) for installation on 2016 - 2020 Chevrolet Tahoe - for use with Intersector Surface Mount & mpower® 3 and 4 inch Stud & Quick Mounts - Passenger Side | 5 Years | $32 | |
| PNT3BKUMB3-D | Under Mirror Mount Bracket Kit (each) for installation on 2016 - 2020 Chevrolet Tahoe - for use with Intersector Surface Mount & mpower® 3 and 4 inch Stud & Quick Mounts - Driver Side | 5 Years | $32 | |
| PMP4BZL01C | Chrome 4" Bezel (includes gasket & hardware kit) for use with mpower® HD Light | 5 Years | $24 | |
| †† | ECTBM002 | ConfigureIT Bluetooth Module with harness, for use with Ford PI Utility 2020 - plugs into vehicle programing connector controls color patterns for headlight modules (mpower® 3" & 4" Fascia & HD Lights) | 90 days | $224 |
| PNT3BKUMB4 | Under Mirror Mount Bracket Kit (each) for installation on Dodge Durango 2016 - 2022 for use with Intersector Surface Mount & mpower® 4” and 3" Stud/Quick Mount Lights | 5 Years | $46 | |
| PMP4BZL03C | Chrome 2 Module 4" Bezel (includes gasket & hardware kit) for use with mpower® HD Stud Mount Light | 5 Years | $28 | |
| PMP4BZL03B | Black 2 Module 4" Bezel (includes gasket & hardware kit) for use with mpower® HD Stud Mount Light | 5 Years | $28 |
Service Parts
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE | |
|---|---|---|---|---|
| PWR5ADP1 | Power5 Cigar-Plug Adaptor w/ 2-Position Rocker Switch - allows you to convert 5-wire light to Cigar Plug for power | 5 Years | $25 | |
| †† | ECTHN001 | ConfigureIT Bluetooth Harness for use with Module - Ford PI Utility 2020 | 90 days | $84 |
| PMPSRPSTH | Replacement Threaded Stud Hardware for 3" or 4" (22mm or .86" is total center of stud to center of stud) | 2 Years | $4 |
