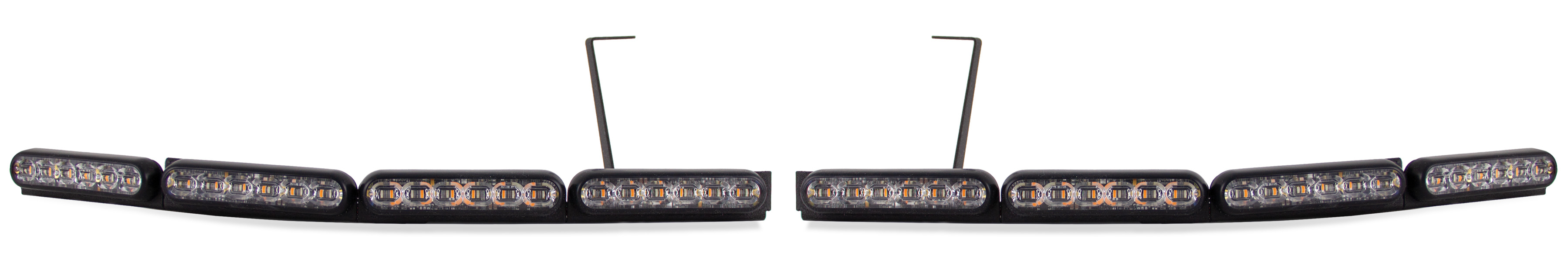

mpower® Arrow System
.Features
Configured product includes:
- 3- or 4-module bracket (modules based on vehicle model)
- mpower 4″ 3-wire lights (quantity based on vehicle model)
- Power/control harness
Features
- Warning arrow greatly reduces install time through use of 3-wire technology
- Functionality mimics the rear of a lightbar
- Integrates under the spoiler of the vehicle for a seamless look
- Available in single, dual or tricolor
- Non-bracket option available; parts sold separately
Customer support with unmatched can-do attitude
Tech Specs
-
Input Voltage Range
9-32 VDC
-
Current Standby
< 1.0 Amp @ 12.8 VDC < 0.5 Amp @ 25.6 VDC
-
Flash Patterns
28 Single
22 Dual
19 Tricolor -
Operating Temperature
-40˚ C to +65° C
-
Certifications
SAE J595 Class 1 certified
SAE J845 Class 1 certified
CA Title 13, Article 22 compliant
Resources
Part Numbers
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| EMPAKKT01 | mpower® Arrow Harness Kit, includes 12" Breakout Box Harness, (1) Breakout Box, (2) Distribution Harnesses and (1) Power/Control Harness - could power up to 8 lights (no mounting brackets) | 5 Years | $431 |
| EMPAKKT02 | mpower® Arrow Harness Kit, includes 36" Breakout Box Harness, (1) Breakout Box, (2) Distribution Harnesses and (1) Power/Control Harness - could power up to 8 lights (no mounting brackets) | 5 Years | $449 |
| EMPAKKT03 | mpower® Arrow Harness Kit, includes 12" Breakout Box Harness, (1) Breakout Box, (2) Distribution Harnesses and (1) Power/Control Harness - could power up to 6 lights (no mounting brackets) | 5 Years | $410 |
| EMPAK 3 Mod 18 LED | mpower® Arrow w/ 4 inch 3-Wire Lights and two of the 3-module Universal Brackets, 18 LEDs, Tricolor in Amber, Blue, Green, Red, White | 5 Years | $1915 |
| EMPAK 3 Mod 6 LED | mpower® Arrow w/ 4 inch 3-Wire Lights and two of the 3-module Universal Brackets, 6 LEDs, Single Color in Amber, Blue, Green, Red, White | 5 Years | $1597 |
| EMPAK 4 Mod 12 LED | mpower® Arrow w/ 4 inch 3-Wire Lights and two of the 4-module Universal Brackets, 12 LEDs, Dual Color in Amber, Blue, Green, Red, White | 5 Years | $2206 |
| EMPAK 4 Mod 18 LED | mpower® Arrow w/ 4 inch 3-Wire Lights and two of the 4-module Universal Brackets, 18 LEDs, Tricolor in Amber, Blue, Green, Red, White | 5 Years | $2390 |
| EMPAK 4 Mod 6 LED | mpower® Arrow w/ 4 inch 3-Wire Lights and two of the 4-module Universal Brackets, 6 LEDs, Single Color in Amber, Blue, Green, Red, White | 5 Years | $1966 |
| EMPAK0098M | mpower® Arrow Kit, includes 12" Breakout Box Harness, (1) Breakout Box, (2) Distribution Harnesses and (1) Power/Control Harness - (6) EMPSCG2STS5RAW - (no mounting brackets) | 5 Years | $1529 |
| EMPAK0098N | mpower® Arrow Kit, includes 12" Breakout Box Harness, (1) Breakout Box, (2) Distribution Harnesses and (1) Power/Control Harness - (8) EMPSCG2STS5RAW - (no mounting brackets) | 5 Years | $1915 |
| EMPAK 3 Mod 12 LED | mpower® Arrow w/ 4 inch 3-Wire Lights and two of the 3-module Universal Brackets, 12 LEDs, Dual Color in Amber, Blue, Green, Red, White | 5 Years | $1777 |
| EMPAKKT04 | mpower® Arrow Harness Kit, includes 36" Breakout Box Harness, (1) Breakout Box, (2) Distribution Harnesses and (1) Power/Control Harness - could power up to 6 lights (no mounting brackets) | 5 Years | $428 |
Accessories
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| PMP2RS302 | Rear Spoiler Bracket, 3 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light - Ford Utility 2020-2021 | 5 Years | $110 |
| PMP2RS304 | Rear Spoiler Bracket, 3 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light, Chevrolet Tahoe Police Pursuit & Civilian Vehicles 2021 | 5 Years | $110 |
| PMP2RS402 | Rear Spoiler Bracket, 4 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light - Ford Utility 2020-2021 | 5 Years | $127 |
| PMP2RS404 | Rear Spoiler Bracket, 4 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light, Chevrolet Tahoe Police Pursuit & Civilian Vehicles 2021 | 5 Years | $127 |
| PMP2RSBDG3 | Rear Spoiler Bracket, 3 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light - Dodge Durango 2011 - 2020 | 5 Years | $121 |
| PMP2RSBTH3 | Rear Spoiler Bracket, 3 Module Kit, includes mounting hardware, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount & mpower Arrow Kit Light - Chevrolet Tahoe, Suburban, Yukon & Yukon XL, 2015 - 2019 | 5 Years | $110 |
| PMP2RSBTH4 | Rear Spoiler Bracket, 4 Module Kit, includes mounting hardware, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount & mpower Arrow Kit Light - Chevrolet Tahoe, Suburban, Yukon & Yukon XL, 2015 - 2019 | 5 Years | $127 |
| PMP2RSBUV3 | Rear Spoiler Bracket, 3 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light - Ford Utility 2011 - 2019 | 5 Years | $110 |
| PMP2RSBUV4 | Rear Spoiler Bracket, 4 Module Kit, Black, for use with mpower® 4" Fascia Stud Mount, 3-Wire 4" Stud Mount Light & mpower Arrow Kit Light - Ford Utility 2011 - 2019 | 5 Years | $127 |
| PMP4BZL02B | Black 4" Bezel (includes gasket & hardware kit) for use with 4" Lights | 5 Years | $20 |
| PMP4BZL02C | Chrome 4" Bezel (includes gasket & hardware kit) for use with 4" Lights | 5 Years | $20 |
| PMP4BZL02P | Primed 4" Bezel (includes gasket & hardware kit) for use with 4" Lights | 5 Years | $20 |
| PMP2RS303 | Rear Spoiler Bracket, 3 Module Kit, Black, for use with mpower® Fascia 4" Lights Stud Mount - Ford Expedition 2018-2021 | 5 Years | $110 |
| PMP2RS403 | Rear Spoiler Bracket, 4 Module Kit, Black, for use with mpower® Fascia 4" Lights Stud Mount - Ford Expedition 2018-2021 | 5 Years | $127 |
Service Parts
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| PMPAKH01 | Hardware Kit, for use with Chevrolet Tahoe bracket for mpower Arrow Kit | 2 Years | $19 |
| PMPAKH02 | Hardware Kit, for use with Ford Utility bracket for mpower Arrow Kit | 2 Years | $75 |
| PMPAKH03 | Hardware Kit, for use with Dodge Durango bracket for mpower Arrow Kit | 2 Years | $28 |
| PMPAKH05 | Hardware Kit, for use with Ford Utility 2020 bracket for mpower Arrow Kit | 2 Years | $75 |
| PMPAKH06 | Hardware Kit, for use with Ford Expedition 2018-2020 bracket for mpower® Arrow Kit | 2 Years | $75 |
| PMPAKH07 | Hardware Kit, for use with Chevrolet Tahoe Police Pursuit & Civilian Vehicles 2021 bracket for mpower Arrow Kit | 2 Years | $28 |
| PMPAKH08 | Hardware Kit, for use with Dodge Durango Pursuit & Civilian Vehicles 2021 bracket for mpower Arrow Kit | 2 Years | $47 |
| PMPAKHNDS1 | Distribution Harness for use with mpower Arrow Kit - connect module to Power/Control Harness (with 4 connectors) | 2 Years | $184 |
| PMPAKHNDS2 | Distribution Harness for use with mpower Arrow Kit - connect module to Power/Control Harness (with 3 connectors) | 2 Years | $175 |
| PMPAKHNPW1 | Power/Control Harness for mpower Arrow Kit - connects (2) Distribution harnesses to Breakout Box | 2 Years | $237 |
| PMPAKJ00 | Breakout Box for use with mpower Arrow Kit Light - 9-32v | 2 Years | $171 |
| PRMLBHNXT1 | Exterior Lightbar Harness for Connect-n-Go - 10' Auxiliary Light Extension, Female & Male Connector | 2 Years | $60 |
| PRMLBHNXT2 | Exterior Lightbar Harness for Connect-n-Go - 3' Auxiliary Light Extension, Female & Male Connector | 2 Years | $35 |
| PRMLBHNXT3 | Exterior Lightbar Harness for Connect-n-Go - 12' Auxiliary Light Extension, Female Connector & Flying Lead | 2 Years | $35 |
| PRMLBHNXT4 | Exterior Lightbar Harness for Connect-n-Go - 20' Auxiliary Light Extension, Female Connector & Flying Lead | 2 Years | $39 |
| PRMLBHNXT5 | Exterior Lightbar Harness for Connect-n-Go - 3' Auxiliary Light Extension, Female Connector & Flying Lead | 2 Years | $33 |
| PMPAKLSD212D | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Red/White | 5 Years | $196 |
| PMPAKLSD212E | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Blue/White | 5 Years | $196 |
| PMPAKLSD212F | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Amber/White | 5 Years | $196 |
| PMPAKLSD212H | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Green/White | 5 Years | $196 |
| PMPAKLSD212J | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Red/Blue | 5 Years | $196 |
| PMPAKLSD212K | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Red/Amber | 5 Years | $196 |
| PMPAKLSD212L | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Red/Green | 5 Years | $196 |
| PMPAKLSD212M | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Blue/Amber | 5 Years | $196 |
| PMPAKLSD212N | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Blue/Green | 5 Years | $196 |
| PMPAKLSD212P | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 12 LED, Dual Color - Green/Amber | 5 Years | $196 |
| PMPAKLSS206A | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 6 LED, Single Color - Amber | 5 Years | $167 |
| PMPAKLSS206B | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 6 LED, Single Color - Blue | 5 Years | $167 |
| PMPAKLSS206G | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 6 LED, Single Color - Green | 5 Years | $167 |
| PMPAKLSS206R | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 6 LED, Single Color - Red | 5 Years | $167 |
| PMPAKLSS208A | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - Amber | 5 Years | $183 |
| PMPAKLSS208B | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - Blue | 5 Years | $183 |
| PMPAKLSS208G | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - Green | 5 Years | $183 |
| PMPAKLSS208R | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - Red | 5 Years | $183 |
| PMPAKLSS208W | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 8 LED, Single Color - White | 5 Years | $183 |
| PMPAKLST218BAG | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Blue/Amber/Green | 5 Years | $217 |
| PMPAKLST218BAW | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Blue/Amber/White | 5 Years | $217 |
| PMPAKLST218BGW | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Blue/Green/White | 5 Years | $217 |
| PMPAKLST218GAW | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Green/Amber/White | 5 Years | $217 |
| PMPAKLST218RAG | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Amber/Green | 5 Years | $217 |
| PMPAKLST218RAW | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Amber/White | 5 Years | $217 |
| PMPAKLST218RBA | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Blue/Amber | 5 Years | $217 |
| PMPAKLST218RBG | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Blue/Green | 5 Years | $217 |
| PMPAKLST218RBW | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Blue/White | 5 Years | $217 |
| PMPAKLST218RGW | mpower® 4" 3-Wire Light w/ Stud Mount, for use with mpower Arrow Kit, SAE Class 1 & CA Title 13, 9-32 Vdc, Black Housing, 18 LED, Tricolor - Red/Green/White | 5 Years | $217 |
