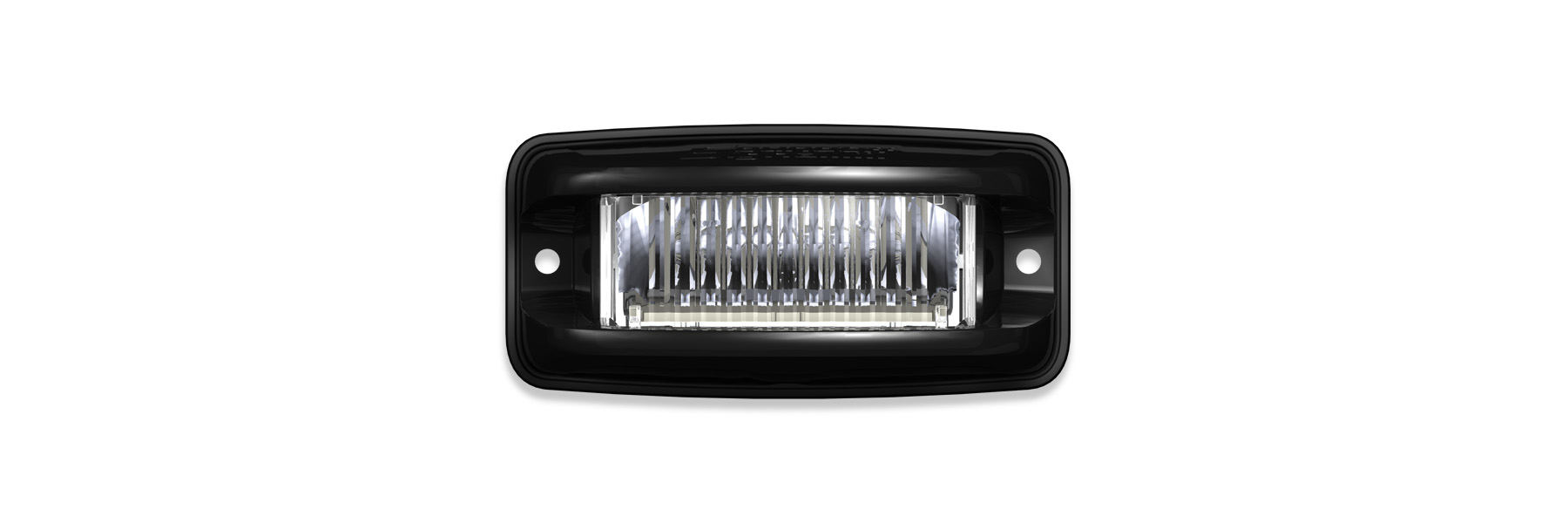

nFORCE® FIT LED Surface Mount Light
Extremely compact, highly versatile surface mount light that can FIT virtually anywhere on any vehicle.
Features
- nFORCE FIT LED Surface Mount Light features new vehicle design integration
- Single, Split, Dual and Tri-Color capability
- Available in a 3 LED solid color, 6 LED solid color, 6 LED dual color and 9 LED tri-color
- Steady-burn white capability
- Separate color control capability
- Secondary function can be either flashing or steady-burn
Customer support with unmatched can-do attitude
Tech Specs
-
Input Voltage Range
10-16 VDC
-
Current Draw (per module)
3, single: <0.5 Amp @ 12.8 VDC 6, single: <1.0 Amp @ 12.8 VDC 6, dual: <0.5 Amp @ 12.8 VDC 9, tricolor: <0.5 Amp @ 12.8 VDC
-
Light Sync
24 single sync, 2 lightheads
-
Flash Patterns
12 single, 12 dual, 12 tricolor
-
Operating Temperature
-40˚ C to +65° C
-
Dimensions
3.72" (9.45 cm) L x 1.72" (4.3 cm) H x 1.48" (3.76 cm) D
-
Certifications
SAE J845 Class 1 certified
ECE R10.04 certified
Resources
Part Numbers
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| ENFFTSSMS3A | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - Amber | 5 Year(s) | $104.00 |
| ENFFTSSMS3B | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - Blue | 5 Year(s) | $104.00 |
| ENFFTSSMS3R | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - Red | 5 Year(s) | $104.00 |
| ENFFTSSMS3W | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - White | 5 Year(s) | $104.00 |
| ENFFTSSMS6A | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Amber | 5 Year(s) | $170.00 |
| ENFFTSSMS6B | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Blue | 5 Year(s) | $170.00 |
| ENFFTSSMS6D | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Dual Color - Red/White | 5 Year(s) | $170.00 |
| ENFFTSSMS6E | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Dual Color - Blue/White | 5 Year(s) | $170.00 |
| ENFFTSSMS6F | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Dual Color - Amber/White | 5 Year(s) | $170.00 |
| ENFFTSSMS6J | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Dual Color - Red/Blue | 5 Year(s) | $170.00 |
| ENFFTSSMS6R | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - Red | 5 Year(s) | $170.00 |
| ENFFTSSMS6W | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 3 LED, Single Color - White | 5 Year(s) | $170.00 |
| ENFFTSSMS9BRA | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 9 LED, Tricolor - Blue/Red/Amber | 5 Year(s) | $186.00 |
| ENFFTSSMS9BRW | nFORCE® FIT Single Surface Mount Light, SAE Class 1, 10-16v, Black Housing, 9 LED, Tricolor - Blue/Red/White | 5 Year(s) | $186.00 |
Accessories
| PART NUMBER | DESCRIPTION | WARRANTY | UNIT PRICE |
|---|---|---|---|
| PNFFTBRK145 | 45° Single Bracket, Horizontal Mount for nFORCE® FIT (each) | 5 Year(s) | $39.00 |
| PNFFTSMHSLC | Bezel for nFORCE® FIT - Chrome | 5 Year(s) | $24.00 |
| PNFSLDGSB-TH | Grille Bracket (mounts in front of the radiator) includes mounting hardware for use with nFORCE®, nFORCE® FIT & GHOST Single Surface Mount Lights - fits Chevrolet Tahoe 2019 | 5 Year(s) | $100.00 |
| PNFFTBRK190 | 90° Single Bracket, Horizontal Mount for nFORCE® FIT (each) | 5 Year(s) | $39.00 |
| PNFFTSMHSLB | Bezel for nFORCE® FIT - Black | 5 Year(s) | $12.00 |
| PNFFTSMHSLW | Bezel for nFORCE® FIT - White | 5 Year(s) | $12.00 |
| PNFFTBRK2LP | License Plate Bracket, Horizontal or Vertical Mount for nFORCE® FIT Single Surface Mount Light - mounts 2 lights, one on each side of the license plate (each) | 5 Year(s) | $40.00 |
