SoundOff Signal

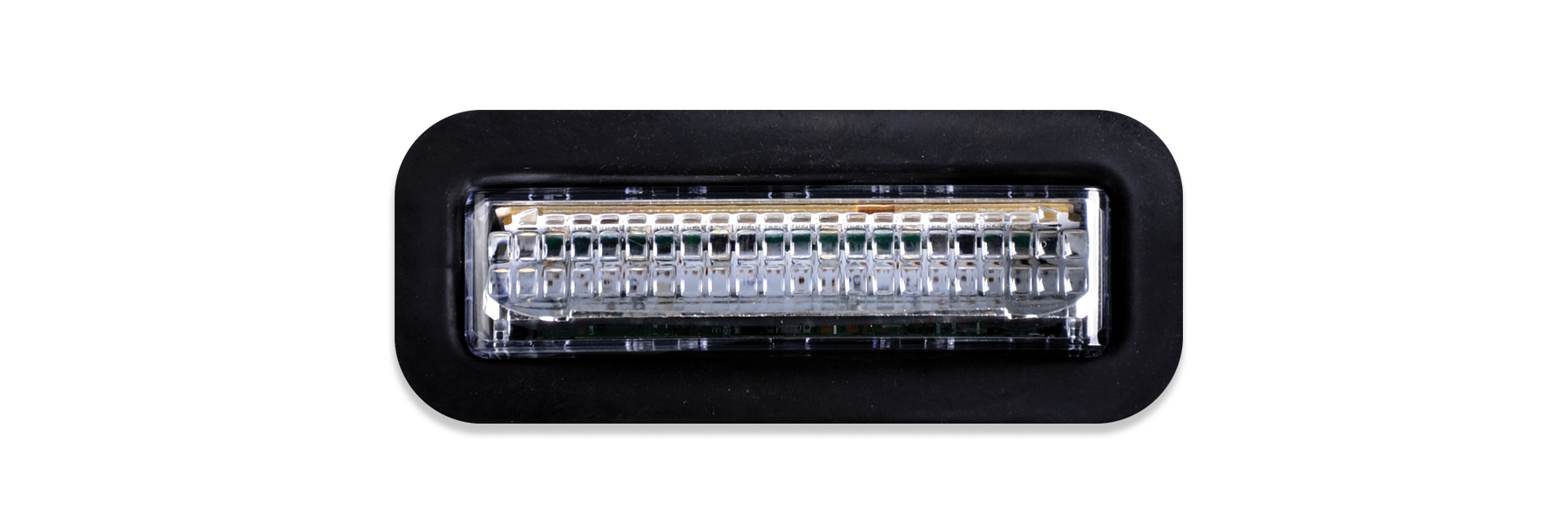

nFORCE® LED Recess Mount Light Product Image

nFORCE® LED Recess Mount Light

Intense forward and off-angle illumination.

Features

  • New vehicle design Integration
  • nFORCE LED Recess Mount Light has Single, Split, Dual and Tri-Color capability
  • 6, 9, 12 and 18 LED counts
  • Steady-burn white capability
  • Secondary functions can be either flashing or steady-burn
  • US and foreign patents pending

Customer support with unmatched can-do attitude

Contact Support

Tech Specs

  • Input Voltage Range

    10-16 VDC (Standard)
    10-30 VDC (Configurable)

  • Light Sync

    24 single sync 2 lightheads

  • Flash Patterns

    12 single, 14 dual, 14 tricolor

  • Operating Temperature

    -40˚ C to +65° C

  • Certifications

    SAE J595 Class 1 certified
    CA Title 13, Article 22 compliant
    EMC 72/245/EEC Certified

Resources

nFORCE_Recess_5_Wire_IS
nFORCE_Recess_Instruction_Sheet
nFORCE_Oval_5_Wire_Installation_Sheet
nFORCE_Oval_Installation_Sheet_
ENFSRS1x_5_Wire_ES_IS
ENFFTSRMSxxxx_IS
ENFSRE2x_5_WIRE_IS
ENFSRS1x_5_WIRE_IS
ENFSRS1x_IS
PNFSLSRVMTB_IS

Part Numbers

PART NUMBERDESCRIPTIONWARRANTYUNIT PRICE
ENFSRE2AnFORCE® Single Recess Mount Light, ECE-R65 Certified, 10-30v, Black Housing w/ Xylex Lens & 9 LED, Single Color - Amber5 Years$230.00
ENFSRE2BnFORCE® Single Recess Mount Light, ECE-R65 Certified, 10-30v, Black Housing w/ Xylex Lens & 9 LED, Single Color - Blue5 Years$230.00
ENFSRE2RnFORCE® Single Recess Mount Light, ECE-R65 Certified, 10-30v, Black Housing w/ Xylex Lens & 9 LED, Single Color - Red5 Years$230.00
ENFSRS1AnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Amber5 Years$172.00
ENFSRS1BnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Blue5 Years$172.00
ENFSRS1JnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Red/Blue5 Years$172.00
ENFSRS1RnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Red5 Years$172.00
ENFSRS1WnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - White5 Years$172.00
ENFSRS2AnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 9 LED, Single Color - Amber5 Years$189.00
ENFSRS2BnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 9 LED, Single Color - Blue5 Years$189.00
ENFSRS2RnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 9 LED, Single Color - Red5 Years$189.00
ENFSRS2WnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 9 LED, Single Color - White5 Years$189.00
ENFSRS3AnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Single Color - Amber5 Years$199.00
ENFSRS3BnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Single Color - Blue5 Years$199.00
ENFSRS3JnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Split Color - Red/Blue5 Years$199.00
ENFSRS3RnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Single Color - Red5 Years$199.00
ENFSRS3WnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Single Color - White5 Years$199.00
ENFSRS4BRAnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 18 LED, Tricolor - Blue/Red/Amber5 Years$226.00
ENFSRS4BRWnFORCE® Single Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 18 LED, Tricolor - Blue/Red/White5 Years$226.00
ENFSRV1AnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - Amber5 Years$190.00
ENFSRV1DnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Split Color - Red/White5 Years$190.00
ENFSRV1FnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Split Color - Amber/White5 Years$190.00
ENFSRV1WnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 6 LED, Single Color - White5 Years$190.00
ENFSRV2AnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 9 LED, Single Color - Amber5 Years$207.00
ENFSRV2A-PCnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, High Output 9 LED, Single Color - Amber5 Years$230.00
ENFSRV2WnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 9 LED, Single Color - White5 Years$207.00
ENFSRV3AnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Single Color - Amber5 Years$217.00
ENFSRV3DnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Dual Color - Red/White5 Years$217.00
ENFSRV3FnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Dual Color - Amber/White5 Years$217.00
ENFSRV3WnFORCE® Single 6" Oval Recess Mount Light, SAE Class 1, 10-16v, Black Housing, 12 LED, Single Color - White5 Years$217.00

Service Parts

PART NUMBERDESCRIPTIONWARRANTYUNIT PRICE
PNFDLRFGRBnFORCE® Single Recess Mount Grommet, Black5 Years$5.60
PNFDLRFGRWnFORCE® Single Recess Mount Grommet, White5 Years$5.60
PNFDLRFGRBnFORCE® Single Recess Mount Grommet, Black5 Years$5.60
PNFSLSRVMTBnFORCE® 6" Oval Recess Mount Grommet & Housing, Black2 Years$18.00
PNFDLRFGRWnFORCE® Single Recess Mount Grommet, White5 Years$5.60
PNFSLSRVMTBnFORCE® 6" Oval Recess Mount Grommet & Housing, Black2 Years$18.00
