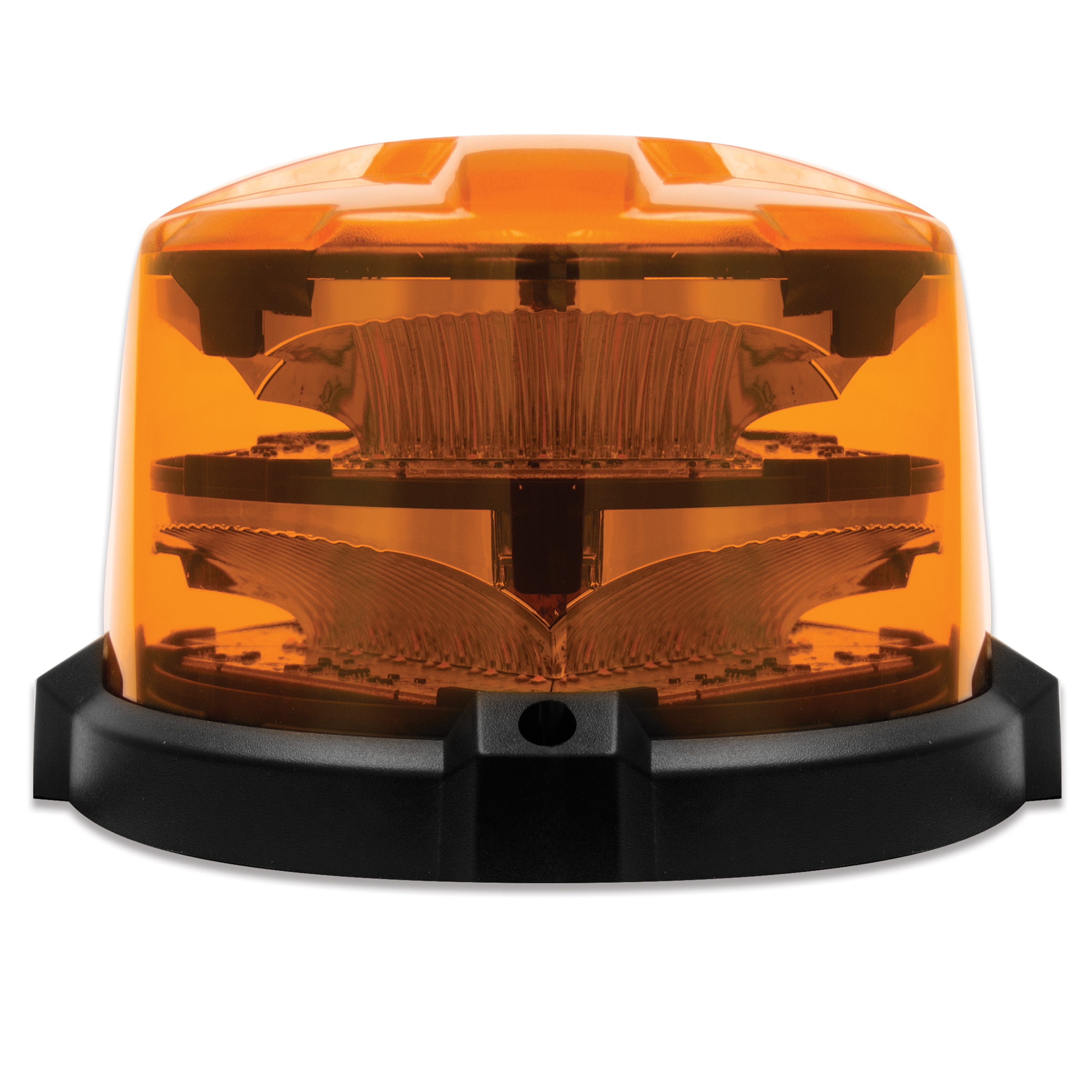

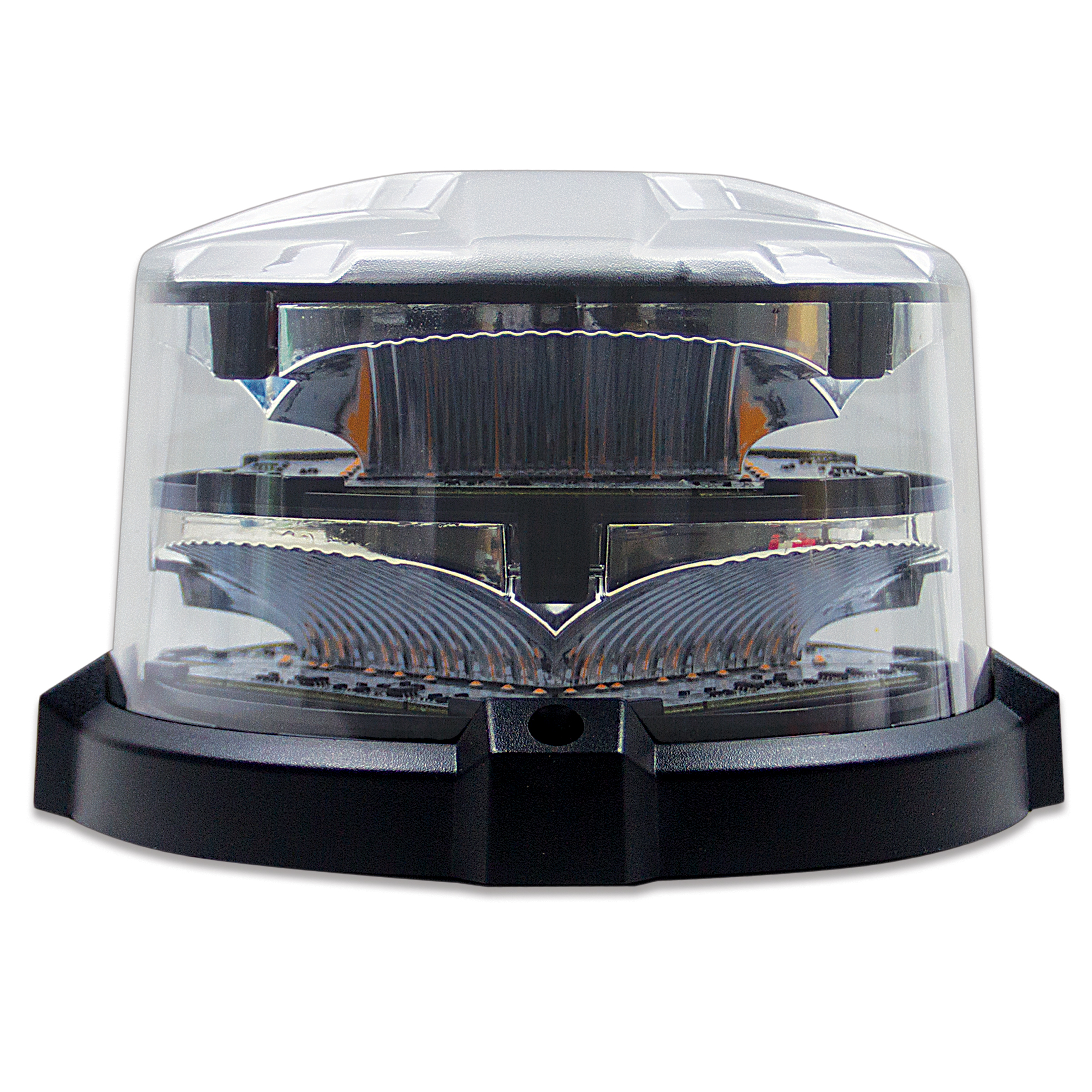

nROADS™ LED Beacon Product Image

nROADS™ LED Beacon

Eight modules means 360 degrees of intense lighting coverage.

Features

Available in 2 Different Models to Choose From
  •  Low Dome with 4 modules
  •  High Dome with 8 modules
Beacons Can be Configured as Single, Dual or Tri-color for Maximum Functionality
  •  Single Color: your choice of 3 LED, 6 LED, 9 LED or 12 LED modules
  •  Dual Color: 6 LED or 12 LED modules (Direct Connect Only)
  •  Tri-Color: 18 LED modules (Direct Connect Only)
Offset Dual Stack Includes 8 Total Modules that Provide 360 Degrees of Intense Lighting Coverage Available in Permanent, Magnetic and 1” NPT Pipe Mounts
  •  Magnetic mount includes a 10 foot cig plug cord with integrated 2-button rocker switch panel
Ability to Customize with All White Illumination to Light Up Work Areas Cruise and Low Power Modes Premium Aluminum Base Durable Polycarbonate Lens Top LEDs are Optional   Product can be configured to meet your lighting needs. Please see order form under Resources to customize.

Customer support with unmatched can-do attitude

Tech Specs

  • Input Voltage Range

    10-16 VDC (standard)
    9-32 VDC (configured)

  • Flash Patterns

    43; 9 user-selectable modes

  • Light Sync

    Up to 24

  • Operating Temperature

    -40° C to +65° C

  • Dimensions

    Low: 3.6" (9.25 cm) H x 8.6" (21.8 cm) diameter
    High: 5.3" (13.4 cm) H x 8.6" (21.8 cm) diameter

  • Certifications

    3 LED Single, 6 LED Dual: J845 Class 2 certified
    6, 9, 12 LED Single, 12 LED Dual, 18 LED Tricolor: J845 Class 1 certified
    6, 9 LED Single, 12 LED Dual: CA Title 13, certified

Resources

Part Numbers

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
ENRBCSLCD (18 LED) nROADS® LED Beacon (ENRBC) w/ Direct Connect & Flat/Pipe Mount - Amber or Clear Low Dome with Amber, Blue, Green, Red or White / 18 LED Modules5 Year(s)$450.00
ENRBCSLCD (12 LED) nROADS® LED Beacon (ENRBC) w/ Direct Connect & Flat/Pipe Mount - Amber or Clear Low Dome with Amber, Blue, Green, Red or White / 12 LED Modules5 Year(s)$410.00
ENRBCSLMZ (12 LED) nROADS® LED Beacon (ENRBC) w/ Cig Plug & Magnet Mount - Amber or Clear Low Dome with Amber, Blue, Green, Red or White / 12 LED Modules5 Year(s)$440.00
ENRBCSHMZ (6 LED) nROADS® LED Beacon (ENRBC) w/ Cig Plug & Magnet Mount - Amber or Clear High Dome with Amber, Blue, Green, Red or White / 6 LED Modules5 Year(s)$575.00
ENRBCSHMZ (3 LED) nROADS® LED Beacon (ENRBC) w/ Cig Plug & Magnet Mount - Amber or Clear High Dome with Amber, Blue, Green, Red or White / 3 LED Modules5 Year(s)$471.00
ENRBCSHMZ (18 LED) nROADS® LED Beacon (ENRBC) w/ Cig Plug & Magnet Mount - Amber or Clear High Dome with Amber, Blue, Green, Red or White / 18 LED Modules5 Year(s)$815.00
ENRBCSHMZ (12 LED) nROADS® LED Beacon (ENRBC) w/ Cig Plug & Magnet Mount - Amber or Clear High Dome with Amber, Blue, Green, Red or White / 12 LED Modules5 Year(s)$735.00
ENRBCSHCD (6 LED) nROADS® LED Beacon (ENRBC) w/ Direct Connect & Combo Mount - Amber or Clear High Dome with Amber, Blue, Green, Red or White / 6 LED Modules5 Year(s)$545.00
ENRBCSHCD (3 LED) nROADS® LED Beacon (ENRBC) w/ Direct Connect & Flat/Pipe Mount - Amber or Clear High Dome with Amber, Blue, Green, Red or White / 3 LED Modules5 Year(s)$441.00
ENRBCSHCD (12 LED) nROADS® LED Beacon (ENRBC) w/ Direct Connect & Flat/Pipe Mount - Amber or Clear High Dome with Amber, Blue, Green, Red or White / 12 LED Modules5 Year(s)$705.00
ENRBCSLMZ (6 LED) nROADS® LED Beacon (ENRBC) w/ Cig Plug & Magnet Mount - Amber or Clear Low Dome with Amber, Blue, Green, Red or White / 6 LED Modules5 Year(s)$360.00
ENRBCSLMZ (3 LED) nROADS® LED Beacon (ENRBC) w/ Cig Plug & Magnet Mount - Amber or Clear Low Dome with Amber, Blue, Green, Red or White / 3 LED Modules5 Year(s)$308.00
ENRBCSHCD (18 LED) nROADS® LED Beacon (ENRBC) w/ Direct Connect & Flat/PipeMount - Amber or Clear High Dome with Amber, Blue, Green, Red or White / 18 LED Modules5 Year(s)$785.00
ENRBCSLMZ (18 LED) nROADS® LED Beacon (ENRBC) w/ Cig Plug & Magnet Mount - Amber or Clear Low Dome with Amber, Blue, Green, Red or White / 18 LED Modules5 Year(s)$480.00
ENRBCSLCD (6 LED) nROADS® LED Beacon (ENRBC) w/ Direct Connect & Flat/Pipe Mount - Amber or Clear Low Dome with Amber, Blue, Green, Red or White / 6 LED Modules5 Year(s)$330.00
ENRBCSLCD (3 LED) nROADS® LED Beacon (ENRBC) w/ Direct Connect & Flat/Pipe Mount - Amber or Clear Low Dome with Amber, Blue, Green, Red or White / 3 LED Modules5 Year(s)$278.00

Accessories

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
PNRLBK03 VHB Magnetic Plate Adapter Kit, includes: VHB Pad & Metal Plate5 Year(s)$32.00
PNRBCPLGS Beacon Base Plate Kit, includes: Base Plate, Gasket & Mounting hardware - for use with nROADS® Permanent Mount5 Year(s)$40.00
PNRBCPLGS Beacon Base Plate Kit, includes: Base Plate, Gasket & Mounting hardware - for use with nROADS® Permanent Mount5 Year(s)$40.00
PNRLBK03 VHB Magnetic Plate Adapter Kit, includes: VHB Pad & Metal Plate5 Year(s)$32.00

Service Parts

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
PNRBCHNJP1 Replacement Upward Board Jumper Harness for nROADS® Beacons2 Year(s)$19.00
PNRLBHNP3 Cig Plug Power Harness2 Year(s)$176.00
PNRBCDRV2 Driver Board with Connector for nROADS® Beacons2 Year(s)$82.00
PNRBCDRV1 Driver Board without Connector for nROADS® Beacons, Mini or Mid-Size Lightbars2 Year(s)$82.00
PNRBCLUP6A Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/Amber LEDs2 Year(s)$39.00
PNRBCLUP6B Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/Blue LEDs2 Year(s)$39.00
PNRBCLUP6R Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/Red LEDs2 Year(s)$39.00
PNRBCLUP6G Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/Green LEDs2 Year(s)$39.00
PNRBCLUP6W Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/White LEDs2 Year(s)$39.00
PNRBCDRNGB Black Dress Ring for nROADS® Beacons2 Year(s)$12.00
PNRBCDMLC Low Dome for nROADS® Beacons - Clear2 Year(s)$22.00
PNRLBHNP1 Cig Plug Power Harness for use with nROADS®2 Year(s)$60.00
PNRLBHNP2 Direct Connect Power Harness for use with nROADS®2 Year(s)$35.00
PNRBCMGKT Magnetic Mount Kit for use with nROADS® Beacons2 Year(s)$40.00
PCPNR401 4 Button Controller2 Year(s)$174.00
PNRBCDMHA High Dome for nROADS® Beacons - Amber2 Year(s)$32.00
PNRBCDRV1 Driver Board without Connector for nROADS® Beacons, Mini or Mid-Size Lightbars2 Year(s)$82.00
PNRBCDMHC High Dome for nROADS® Beacons - Clear2 Year(s)$32.00
PNRBCDMHA High Dome for nROADS® Beacons - Amber2 Year(s)$32.00
PNRBCDRV1 Driver Board without Connector for nROADS® Beacons, Mini or Mid-Size Lightbars2 Year(s)$82.00
PNRBCDMHC High Dome for nROADS® Beacons - Clear2 Year(s)$32.00
PNRBCHNJP1 Replacement Upward Board Jumper Harness for nROADS® Beacons2 Year(s)$19.00
PNRLBHNP3 Cig Plug Power Harness2 Year(s)$176.00
PNRBCDRV2 Driver Board with Connector for nROADS® Beacons2 Year(s)$82.00
PNRBCLUP6A Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/Amber LEDs2 Year(s)$39.00
PNRBCLUP6B Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/Blue LEDs2 Year(s)$39.00
PNRBCLUP6R Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/Red LEDs2 Year(s)$39.00
PNRBCLUP6G Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/Green LEDs2 Year(s)$39.00
PNRBCLUP6W Replacement Upward Light Module for nROADS® Beacons - 6 LED Solid Color/White LEDs2 Year(s)$39.00
PNRBCDRNGB Black Dress Ring for nROADS® Beacons2 Year(s)$12.00
PNRBCDMLC Low Dome for nROADS® Beacons - Clear2 Year(s)$22.00
PNRLBHNP1 Cig Plug Power Harness for use with nROADS®2 Year(s)$60.00
PNRLBHNP2 Direct Connect Power Harness for use with nROADS®2 Year(s)$35.00
PNRBCMGKT Magnetic Mount Kit for use with nROADS® Beacons2 Year(s)$40.00
PCPNR401 4 Button Controller2 Year(s)$174.00
PNRBCBGBH Beacon Branch Guard Kit, for Flat/Pipe Mount (fits high and low dome, Black Steel), includes: Branch Guard and Beacon Base Plate Kit2 Year(s)$65.00
PNRBCDMLA Low Dome for nROADS® Beacons - Amber2 Year(s)$22.00
PCPNR4HN1 Jumper Harness - for use with 4 Button Controller2 Year(s)$23.00
PNRBCBGBH Beacon Branch Guard Kit, for Flat/Pipe Mount (fits high and low dome, Black Steel), includes: Branch Guard and Beacon Base Plate Kit2 Year(s)$65.00
PNRBCDMLA Low Dome for nROADS® Beacons - Amber2 Year(s)$22.00
PCPNR4HN1 Jumper Harness - for use with 4 Button Controller2 Year(s)$23.00
