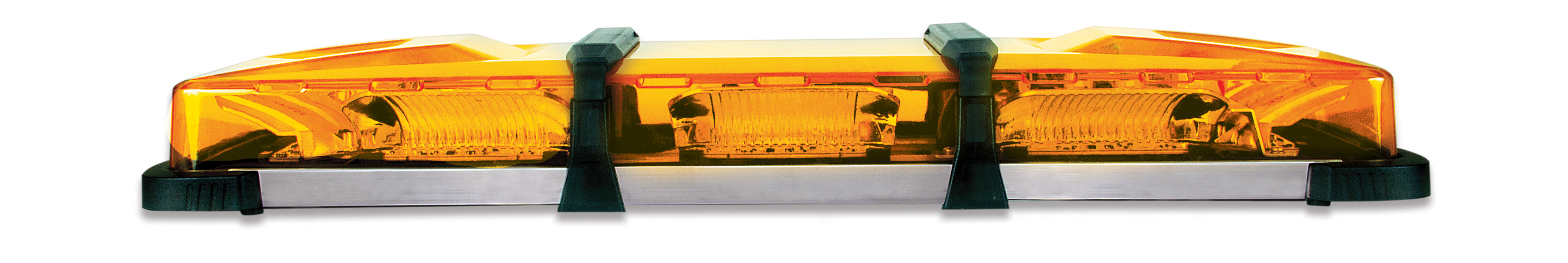

nROADS® Mini and MidSize Lightbar Product Image

nROADS® Mini and MidSize Lightbar

Three mount options to fit your vehicle and illuminate your work.

Features

Customer support with unmatched can-do attitude

Tech Specs

  • Input Voltage Range

    10-16 VDC

  • Wattage (per module)

    3 LED Single Color: steady burn, 6.4 Watts; flashing, 3.2 Watts
    6 LED Single Color: steady burn, 12.8 Watts; flashing, 6.4 Watts
    12 LED Single Color: Steady burn: 25.6 Watts; flashing,12.8 Watts
    12 LED Dual Color: Steady burn: 12.8 Watts; flashing, 6.4 Watts
    18 LED Tri-Color: Steady burn: 12.8 Watts; flashing, 6.4 Watts

  • Current Draw (per module)

    3 LED Single Color: .5 Amps
    6 LED Single Color: 1 Amp
    12 LED Single Color: 2 Amps
    12 LED Dual Color: 1 Amp
    18 LED Tri-Color: 1 Amp

  • Flash Patterns

    43 flash patterns; 9 user-selectable modes

  • Operating Temperature

    -40° C to +65° C

  • Dimensions

    Mid: 24.25” L (61.6 cm) x 7.95” W (20.2 cm) x 2.83” H (7.2 cm)

  • Mount

    Magnetic with Cig Plug

  • Certifications

    3 LED Single Colors: J845 Class 2 certified
    6 and 12 LED Single Colors: J845 Class 1 certified
    12 LED Dual Colors: J845 Class 1 certified, CA Title 13 certified

Resources

Part Numbers

Symbol Key Descriptions:

††
This symbol next to a part means this part number is Going Obsolete. Check availability with customer service.
This symbol next to a part means No Discounts Allowed. Contact customer service if you have any questions.
PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
ENRMBSSMZ217 (12 LED) nROADS® LED Minibar (ENRMB) w/ Cig Plug & Magnet Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 12 LED Modules 5 Years $1010
ENRMBSSMZ217 (18 LED) nROADS® LED Minibar (ENRMB) w/ Cig Plug & Magnet Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 18 LED Modules 5 Years $1178
ENRMBSSMZ217 (3 LED) nROADS® LED Minibar (ENRMB) w/ Cig Plug & Magnet Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 3 LED Modules 5 Years $632
ENRMBSSMZ217 (6 LED) nROADS® LED Minibar (ENRMB) w/ Cig Plug & Magnet Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 6 LED Modules 5 Years $812
ENRMBSSMZ224 (12 LED) nROADS® LED Mid-bar (ENRMB) w/ Cig Plug & Magnet Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 12 LED Modules 5 Years $1275
ENRMBSSMZ224 (18 LED) nROADS® LED Mid-bar (ENRMB) w/ Cig Plug & Magnet Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 18 LED Modules 5 Years $1499
ENRMBSSMZ224 (3 LED) nROADS® LED Mid-bar (ENRMB) w/ Cig Plug & Magnet Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 3 LED Modules 5 Years $771
ENRMBSSMZ224 (6 LED) nROADS® LED Mid-bar (ENRMB) w/ Cig Plug & Magnet Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 6 LED Modules 5 Years $1011
ENRMBSSSD217 (12 LED) nROADS® LED Minibar (ENRMB) w/ Direct Connect & Standard Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 12 LED Modules 5 Years $972
ENRMBSSSD217 (18 LED) nROADS® LED Minibar (ENRMB) w/ Direct Connect & Standard Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 18 LED Modules 5 Years $1140
ENRMBSSSD217 (3 LED) nROADS® LED Minibar (ENRMB) w/ Direct Connect & Standard Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 3 LED Modules 5 Years $594
ENRMBSSSD217 (6 LED) nROADS® LED Minibar (ENRMB) w/ Direct Connect & Standard Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 6 LED Modules 5 Years $774
ENRMBSSSD224 (12 LED) nROADS® LED Mid-bar (ENRMB) w/ Direct Connect & Standard Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 12 LED Modules 5 Years $1237
ENRMBSSSD224 (18 LED) nROADS® LED Mid-bar (ENRMB) w/ Direct Connect & Standard Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 18 LED Modules 5 Years $1461
ENRMBSSSD224 (3 LED) nROADS® LED Mid-bar (ENRMB) w/ Direct Connect & Standard Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 3 LED Modules 5 Years $733
ENRMBSSSD224 (6 LED) nROADS® LED Mid-bar (ENRMB) w/ Direct Connect & Standard Mount - Amber or Clear Dome with Amber, Blue, Green, Red or White / 6 LED Modules 5 Years $973
ENRMB00001 nROADS® CA Title 13 Single Stack 24" Minibar, Permanent Mount w/ Standard Fixed Height, 9-32v, Single Color Amber LEDs 5 Years $1153
ENRMB00002 nROADS® CA Title 13 Single Stack 17" Minibar, Permanent Mount w/ Standard Fixed Height, 9-32v, Single Color Amber LEDs 5 Years $974

Accessories

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
PNRLBK02 Headache Foot (each) for nROADS® Mini or Mid-Size Lightbars 2 Years $88
PNRLBK03 VHB Magnetic Plate Adapter Kit, includes: VHB Pad & Metal Plate 5 Years $40

Service Parts

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
PNRLBLCS212A 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, CA Title 13 - Single Color Amber LEDs 2 Years $127
PNRLBLCS209A 9 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, CA Title 13 - Single Color Amber LEDs 2 Years $110
PCPNR401 4 Button Controller 2 Years $236
PCPNR4HN1 Jumper Harness - for use with 4 Button Controller 2 Years $31
PNRBCDRV1 Driver Board without Connector for nROADS® Beacons, Mini or Mid-Size Lightbars 2 Years $111
PNRLBDMECA Endcap Dome for nROADS® Mini or Mid-Size Lightbars - Amber 2 Years $31
PNRLBDMECB Endcap Dome for nROADS® Mini or Mid-Size Lightbars - Blue 2 Years $31
PNRLBDMECC Endcap Dome for nROADS® Mini or Mid-Size Lightbars - Clear 2 Years $31
PNRLBDMMSA Middle Low Dome for nROADS® Mini or Mid-Size Lightbars - Amber 2 Years $25
PNRLBDMMSB Middle Low Dome for nROADS® Mini or Mid-Size Lightbars - Blue 2 Years $25
PNRLBDMMSC Middle Low Dome for nROADS® Mini or Mid-Size Lightbars - Clear 2 Years $25
PNRLBDMSTB Black Dome Strap for nROADS® Mini or Mid-Size Lightbars 2 Years $11
PNRLBEXECB Black Extrusion Endcap for nROADS® Mini or Mid-Size Lightbars 2 Years $7
PNRLBHNMD1 Short Module Harness for nROADS® Mini or Mid-Size Lightbars 2 Years $28
PNRLBHNMD2 Middle Module Harness for nROADS® Mini or Mid-Size Lightbars 2 Years $28
PNRLBHNMD3 Long Module Harness for nROADS® Mini or Mid-Size Lightbars 2 Years $42
PNRLBHNP1 Cig Plug Power Harness for use with nROADS® 2 Years $81
PNRLBHNP2 Direct Connect Power Harness for use with nROADS® 2 Years $48
PNRLBHNP3 Cig Plug Power Harness 2 Years $134
PNRLBK00 Standard Fixed Height Foot (each) for nROADS® Mini or Mid-Size Lightbars 2 Years $42
PNRLBK01 Magnet Adder Kit (per Foot) for nROADS® Mini or Mid-Size Lightbars 2 Years $31
PNRLBLSD206D 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Red/White LEDs 2 Years $79
PNRLBLSD206E 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Blue/White LEDs 2 Years $79
PNRLBLSD206F 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Amber/White LEDs 2 Years $79
PNRLBLSD206H 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Green/White LEDs 2 Years $79
PNRLBLSD206J 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Red/Blue LEDs 2 Years $79
PNRLBLSD206K 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Red/Amber LEDs 2 Years $79
PNRLBLSD206L 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Red/Green LEDs 2 Years $79
PNRLBLSD206M 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Amber/Blue LEDs 2 Years $79
PNRLBLSD206N 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Blue/Green LEDs 2 Years $79
PNRLBLSD206P 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Green/Amber LEDs 2 Years $79
PNRLBLSD212D 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Red/White LEDs 2 Years $127
PNRLBLSD212E 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Blue/White LEDs 2 Years $127
PNRLBLSD212F 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Amber/White LEDs 2 Years $127
PNRLBLSD212H 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Green/White LEDs 2 Years $127
PNRLBLSD212J 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Red/Blue LEDs 2 Years $127
PNRLBLSD212K 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Red/Amber LEDs 2 Years $127
PNRLBLSD212L 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Red/Green LEDs 2 Years $127
PNRLBLSD212M 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Amber/Blue LEDs 2 Years $127
PNRLBLSD212N 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Blue/Green LEDs 2 Years $127
PNRLBLSD212P 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Dual Color Green/Amber LEDs 2 Years $127
PNRLBLSS203A 3 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Amber LEDs 2 Years $52
PNRLBLSS203B 3 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Blue LEDs 2 Years $52
PNRLBLSS203G 3 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Green LEDs 2 Years $52
PNRLBLSS203R 3 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Red LEDs 2 Years $52
PNRLBLSS203W 3 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color White LEDs 2 Years $52
PNRLBLSS206A 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Amber LEDs 2 Years $79
PNRLBLSS206B 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Blue LEDs 2 Years $79
PNRLBLSS206G 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Green LEDs 2 Years $79
PNRLBLSS206R 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Red LEDs 2 Years $79
PNRLBLSS206W 6 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color White LEDs 2 Years $79
PNRLBLSS209A 9 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Amber LEDs 2 Years $110
PNRLBLSS209B 9 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Blue LEDs 2 Years $110
PNRLBLSS209G 9 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Green LEDs 2 Years $110
PNRLBLSS209R 9 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Red LEDs 2 Years $110
PNRLBLSS209W 9 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color White LEDs 2 Years $110
PNRLBLSS212A 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Amber LEDs 2 Years $127
PNRLBLSS212B 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Blue LEDs 2 Years $127
PNRLBLSS212G 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Green LEDs 2 Years $127
PNRLBLSS212R 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color Red LEDs 2 Years $127
PNRLBLSS212W 12 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Single Color White LEDs 2 Years $127
PNRLBLST218BAG 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Blue/Amber/Green LEDs 2 Years $157
PNRLBLST218BAW 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Blue/Amber/White LEDs 2 Years $157
PNRLBLST218BGW 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Blue/Green/White LEDs 2 Years $157
PNRLBLST218GAW 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Green/Amber/White LEDs 2 Years $157
PNRLBLST218RAG 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Red/Amber/Green LEDs 2 Years $157
PNRLBLST218RAW 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Red/Amber/White LEDs 2 Years $157
PNRLBLST218RBA 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Red/Blue/Amber LEDs 2 Years $157
PNRLBLST218RBG 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Red/Blue/Green LEDs 2 Years $157
PNRLBLST218RBW 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Red/Blue/White LEDs 2 Years $157
PNRLBLST218RGW 18 LED Replacement Inboard Warning Module for nROADS® Mini or Mid-Size Lightbars, 9-32v, SAE J845 Class 1 - Tricolor Red/Green/White LEDs 2 Years $157
