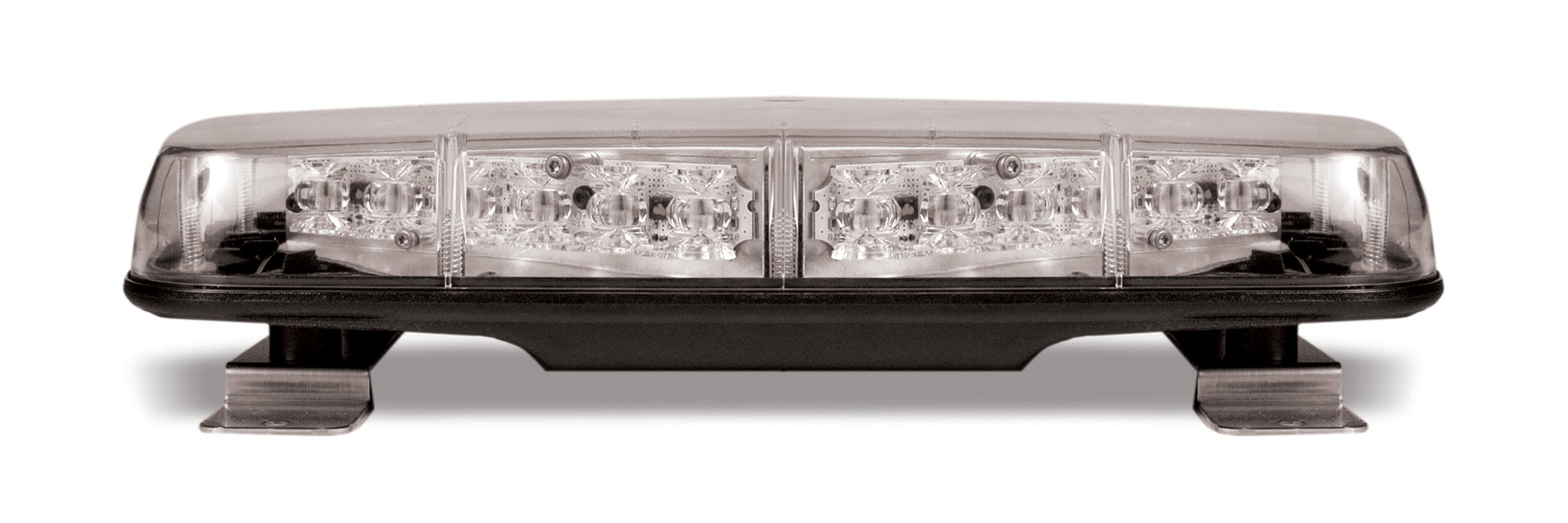

Pinnacle Mini LED Lightbar Product Image

Pinnacle Mini LED Lightbar

Optimal lighting output spread far and wide, in a compact footprint to meet your needs.

Features

  • Pinnacle Mini LED Lightbar, EPL7000 is Class 1 certified for blue and red solid colors
  • Magnetic mount has Cig plug with 3-position rocker switch (on, off and flash pattern advance)
  • Red LED indicator light and 10′ cord length
  • 4 extra strong magnets each with an 85 lb. pull each to prevent the bar from slipping or moving
  • Permanent mount with 12′ cable with bare wires for hard wire installation
  • Fusion II Technology – optic for a bright, extra wide output
  • Non-volatile memory – recalls last flash pattern used
  • New! EPL7100 SAE Class 1 Certified

Customer support with unmatched can-do attitude

Tech Specs

  • Input Voltage Range

    10-16 VDC

  • Current Draw

    2 Amp @ 12.8 VDC

  • LED Count

    24

  • Flash Patterns

    28

  • Operating Temperature

    -40˚ C to +65° C

  • Dimensions

    14.16" (36 cm) L x 1.90" (4.8cm) H x 8.27" (21 cm) D

  • Certifications

    SAE J845 Class 1 certified

Resources

Part Numbers

Symbol Key Descriptions:

††
This symbol next to a part means this part number is Going Obsolete. Check availability with customer service. Once a part number is discontinued, it will no longer show up in the part numbers list below.
This symbol next to a part means No Discounts Allowed. Contact customer service if you have any questions.
PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
EPL71HDAA Pinnacle Mini Lightbar (EPL7100) SAE Class 1 - High Height Permanent Mount w/ 12 ft cable for hardwire installation - Amber Dome/Amber LEDs 5 Years $486
EPL7PFWC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 25 ft cable for hardwire installation – White LEDs 5 Years $488
EPL7PFRC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 25 ft cable for hardwire installation – Red LEDs 5 Years $488
EPL7PFPC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 25 ft cable for hardwire installation – Green/Amber LEDs 5 Years $526
EPL7PFJC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 25 ft cable for hardwire installation – Red/Blue LEDs 5 Years $488
EPL7PFFC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 25 ft cable for hardwire installation – Amber/White LEDs 5 Years $488
EPL7PFDC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 25 ft cable for hardwire installation – Red/White LEDs 5 Years $488
EPL7PFAC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 25 ft cable for hardwire installation – Amber LEDs 5 Years $488
EPL7PFBC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 25 ft cable for hardwire installation – Blue LEDs 5 Years $488
EPL7PDWC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 12 ft cable for hardwire installation – White LEDs 5 Years $463
EPL7PFAA Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 25 ft cable for hardwire installation – Amber Dome w/ Amber LEDs 5 Years $488
EPL7PDPC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Green/Amber LEDs 5 Years $516
EPL7PDRC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Red LEDs 5 Years $463
EPL7PDNC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Blue/Green LEDs 5 Years $516
EPL7PDKC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Red/Amber LEDs 5 Years $463
EPL7PDMC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Blue/Amber LEDs 5 Years $463
EPL7PDHC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Green/White LEDs 5 Years $516
EPL7PDJC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Red/Blue LEDs 5 Years $463
EPL7PDFC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Amber/White LEDs 5 Years $463
EPL7PDGC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Green LEDs 5 Years $516
EPL7PDDC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Red/White LEDs 5 Years $463
EPL7PDEC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Blue/White LEDs 5 Years $463
EPL7PDBC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Blue LEDs 5 Years $463
EPL7PDAA Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Amber Dome w/ Amber LEDs 5 Years $463
EPL7PDAC Pinnacle Mini Lightbar (EPL7000) - Standard Permanent Mount w/ 12 ft cable for hardwire installation – Amber LEDs 5 Years $463
EPL7M+RC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Red LEDs 5 Years $488
EPL7M+WC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – White LEDs 5 Years $488
EPL7M+MC Pinnacle Mini Lightbar (EPL7000) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Blue/Amber LEDs 5 Years $488
EPL7M+PC Pinnacle Mini Lightbar (EPL7000) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Green/Amber LEDs 5 Years $541
EPL7M+JC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Red/Blue LEDs 5 Years $488
EPL7M+KC Pinnacle Mini Lightbar (EPL7000) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Red/Amber LEDs 5 Years $488
EPL7M+GC Pinnacle Mini Lightbar (EPL7000) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Green LEDs 5 Years $541
EPL7M+HC Pinnacle Mini Lightbar (EPL7000) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Green/White LEDs 5 Years $541
EPL7M+FC Pinnacle Mini Lightbar (EPL7000) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Amber/White LEDs 5 Years $488
EPL7M+DC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Red/White LEDs 5 Years $488
EPL7M+EC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Blue/White LEDs 5 Years $488
EPL7M+AC Pinnacle Mini Lightbar (EPL7000) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Amber LEDs 5 Years $488
EPL7M+BC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Blue LEDs 5 Years $488
EPL7HFWC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - High Height Permanent Mount (for larger vehicles) w/ 25 ft cable for hardwire installation – White LEDs 5 Years $488
EPL7M+AA Pinnacle Mini Lightbar (EPL7000) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug – Amber Dome/Amber LEDs 5 Years $488
EPL7HFJC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - High Height Permanent Mount (for larger vehicles) w/ 25 ft cable for hardwire installation – Red/Blue LEDs 5 Years $488
EPL7HFRC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - High Height Permanent Mount (for larger vehicles) w/ 25 ft cable for hardwire installation – Red LEDs 5 Years $488
EPL7HFFC Pinnacle Mini Lightbar (EPL7000) - High Height Permanent Mount (for larger vehicles) w/ 25 ft cable for hardwire installation – Amber/White LEDs 5 Years $488
EPL7HFBC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - High Height Permanent Mount (for larger vehicles) w/ 25 ft cable for hardwire installation – Blue LEDs 5 Years $488
EPL7HFDC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - High Height Permanent Mount (for larger vehicles) w/ 25 ft cable for hardwire installation – Red/White LEDs 5 Years $488
EPL7HFAA Pinnacle Mini Lightbar (EPL7000) - High Height Permanent Mount (for larger vehicles) w/ 25 ft cable for hardwire installation – Amber Dome w/ Amber LEDs 5 Years $488
EPL7HFAC Pinnacle Mini Lightbar (EPL7000) - High Height Permanent Mount (for larger vehicles) w/ 25 ft cable for hardwire installation – Amber LEDs 5 Years $488
EPL7HDKC Pinnacle Mini Lightbar (EPL7000) - High Height Permanent Mount (for larger vehicles) w/ 12 ft cable for hardwire installation – Red & Amber LEDs 5 Years $463
EPL7HDRC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - High Height Permanent Mount (for larger vehicles) w/ 12 ft cable for hardwire installation – Red LEDs 5 Years $463
EPL7HDFC Pinnacle Mini Lightbar (EPL7000) - High Height Permanent Mount (for larger vehicles) w/ 12 ft cable for hardwire installation – Amber & White LEDs 5 Years $463
EPL7HDJC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - High Height Permanent Mount (for larger vehicles) w/ 12 ft cable for hardwire installation – Red & Blue LEDs 5 Years $463
EPL7HDDC Pinnacle Mini Lightbar (EPL7000) - High Height Permanent Mount (for larger vehicles) w/ 12 ft cable for hardwire installation – Red & White LEDs 5 Years $463
EPL7HDAC Pinnacle Mini Lightbar (EPL7000) - High Height Permanent Mount (for larger vehicles) w/ 12 ft cable for hardwire installation – Amber LEDs 5 Years $463
EPL7HDBC Pinnacle Mini Lightbar (EPL7000) SAE Class 1 - High Height Permanent Mount (for larger vehicles) w/ 12 ft cable for hardwire installation – Blue LEDs 5 Years $463
EPL71PDPC Pinnacle Mini Lightbar (EPL7100) - Standard Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Green & Amber LEDs 5 Years $486
EPL7HDAA Pinnacle Mini Lightbar (EPL7000) - High Height Permanent Mount (for larger vehicles) w/ 12 ft cable for hardwire installation – Amber Dome/Amber LEDs 5 Years $463
EPL71PDKC Pinnacle Mini Lightbar (EPL7100) - Standard Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Red & Amber LEDs 5 Years $486
EPL71PDMC Pinnacle Mini Lightbar (EPL7100) - Standard Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Blue & Amber LEDs 5 Years $486
EPL71PDAC Pinnacle Mini Lightbar (EPL7100) SAE Class 1 - Standard Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Amber LEDs 5 Years $486
EPL71PDFC Pinnacle Mini Lightbar (EPL7100) - Standard Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Amber & White LEDs 5 Years $486
EPL71PDAA Pinnacle Mini Lightbar (EPL7100) SAE Class 1 - Standard Permanent Mount w/ 12 ft cable for hardwire installation - Amber Dome/Amber LEDs 5 Years $486
EPL71M+MC Pinnacle Mini Lightbar (EPL7100) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug - Clear Dome/Blue & Amber LEDs 5 Years $503
EPL71M+PC Pinnacle Mini Lightbar (EPL7100) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug - Clear Dome/Green & Amber LEDs 5 Years $552
EPL71M+FC Pinnacle Mini Lightbar (EPL7100) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug - Clear Dome/Amber & White LEDs 5 Years $503
EPL71M+KC Pinnacle Mini Lightbar (EPL7100) - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug - Clear Dome/Red & Amber LEDs 5 Years $503
EPL71M+AA Pinnacle Mini Lightbar (EPL7100) SAE Class 1 - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug - Amber Dome/Amber LEDs 5 Years $503
EPL71M+AC Pinnacle Mini Lightbar (EPL7100) SAE Class 1 - Magnetic Mount, 10 ft cord w/ 12v Cigar Plug - Clear Dome/Amber LEDs 5 Years $503
EPL71HDMC Pinnacle Mini Lightbar (EPL7100) - High Height Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Blue & Amber LEDs 5 Years $486
EPL71HDFC Pinnacle Mini Lightbar (EPL7100) - High Height Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Amber & White LEDs 5 Years $486
EPL71HDKC Pinnacle Mini Lightbar (EPL7100) - High Height Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Red & Amber LEDs 5 Years $486
EPL71HDAC Pinnacle Mini Lightbar (EPL7100) SAE Class 1 - High Height Permanent Mount w/ 12 ft cable for hardwire installation - Clear Dome/Amber LEDs 5 Years $486

Service Parts

PART NUMBER DESCRIPTION WARRANTY UNIT PRICE
PMB3BKT Replacement Permanent Mount Bracket (1 bracket) for EPL7000 & LED3 Mini Lightbars 2 Year(s) $28
PMB3BMG Replacement Magnetic Foot (1 - 85 lb pull foot) for EPL7000 & LED3 Mini Lightbars 2 Year(s) $21
PMB3BRKT Permanent Mount Bracket Conversion Kit w/ 2 Brackets LED3 Mini Lightbars 2 Year(s) $56
PMB3CGPG Replacement 12v Cigar Plug w/ 3-Position Rocker Switch, LED Indicator Light & 10 ft cord for EPL7000 & LED3 Mini Lightbars 2 Year(s) $27
PMB3HBKT Replacement High Height Permanent Mount Bracket (1 bracket) for Mini Lightbars 2 Year(s) $28
PMB3MGKT Magnetic Mount Conversion Kit w/ 4 - 85 lb pull feet for EPL7000 & LED3 Mini Lightbars 2 Year(s) $83
PMB3RTNR Replacement Retainer Clamp w/ Hardware (for Cigar Plug Cable) for EPL7000 & LED3 Mini Lightbars 2 Year(s) $1
PMB3TDA Color Outer Dome for Mini Lightbars - Amber 2 Year(s) $28
†† PMB3TDC Clear Outer Dome for EPL7000 & LED3 Mini Lightbars 2 Year(s) $28
